The Heart of Solar Manufacturing: How a Precision Roll Forming Line Shapes Your Success
Have you ever wondered how the robust, uniform metal structure supporting massive solar cell arrays is manufactured with such speed, consistency, and strength? The answer lies at the heart of modern manufacturing processes: the advanced solar trough roll forming machine. It's more than just a machine; it's a core component of a meticulously crafted, precision-integrated production line. So, what are the components of this high-precision photovoltaic bracket roll forming machine? This article will guide you through the key components of a complete solar bracket roll forming production line and explain in detail how coiled steel raw materials are transformed into core components for solar projects.

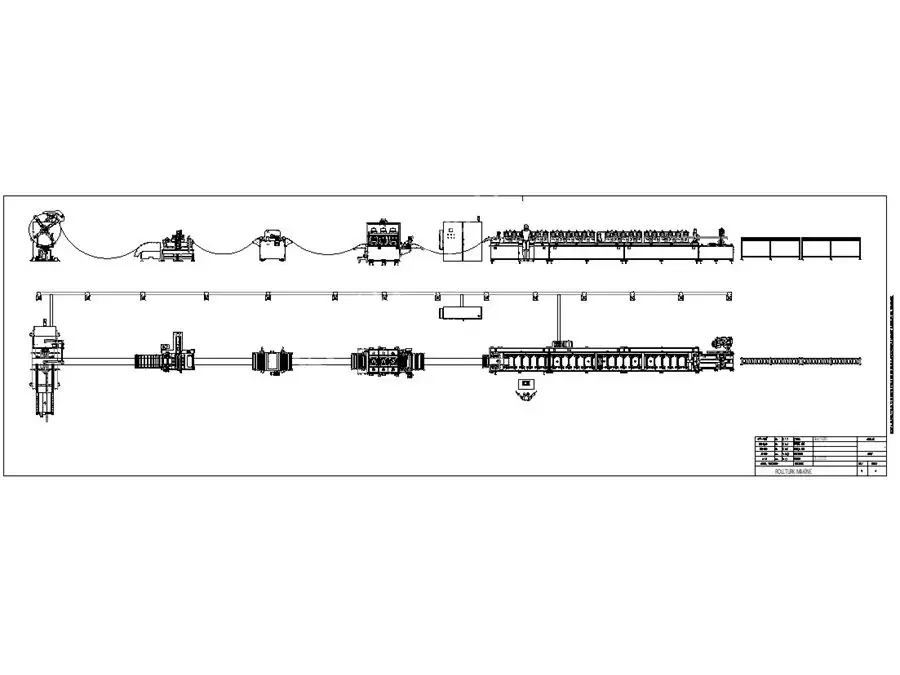

Deconstructing the Solar Roll Forming Production Line
A high-performance solar panel mounting bracket roll forming machine line is a symphony of coordinated stations. Each component plays a critical role in ensuring efficiency, precision, and the final quality of the solar strut channel.

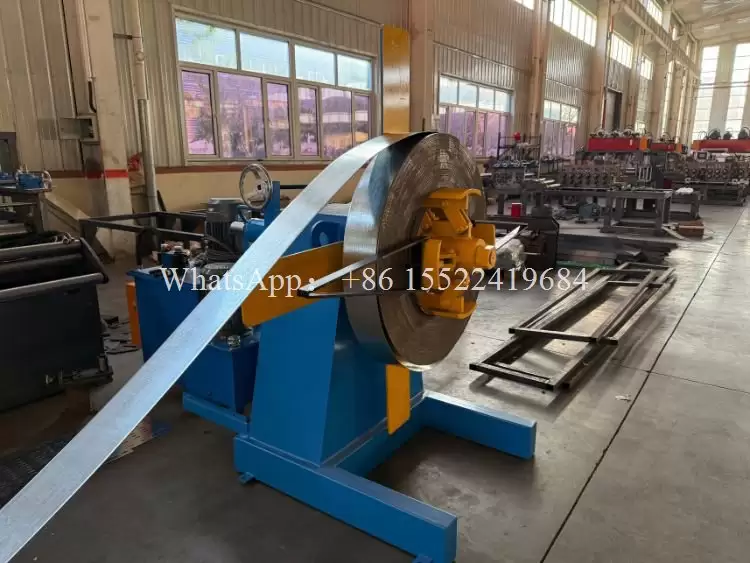

The Starting Point: Decoiler
The process begins with the decoiler, which securely holds and feeds the large coil of raw steel (typically pre-painted galvanized steel or aluminum) into the line. It provides controlled tension and unwinding, ensuring a smooth, consistent start to the production process.

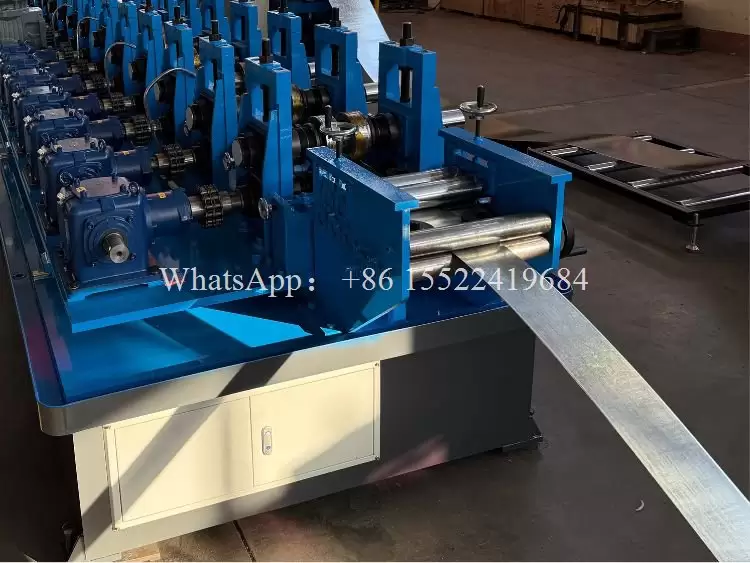

Guiding the Material: Feeding Table
The feeding table acts as the guiding pathway. It accurately directs the uncoiled metal strip into the forming section, ensuring perfect alignment. This crucial step prevents skewing and sets the stage for precise solar bracket roll forming machine operations.

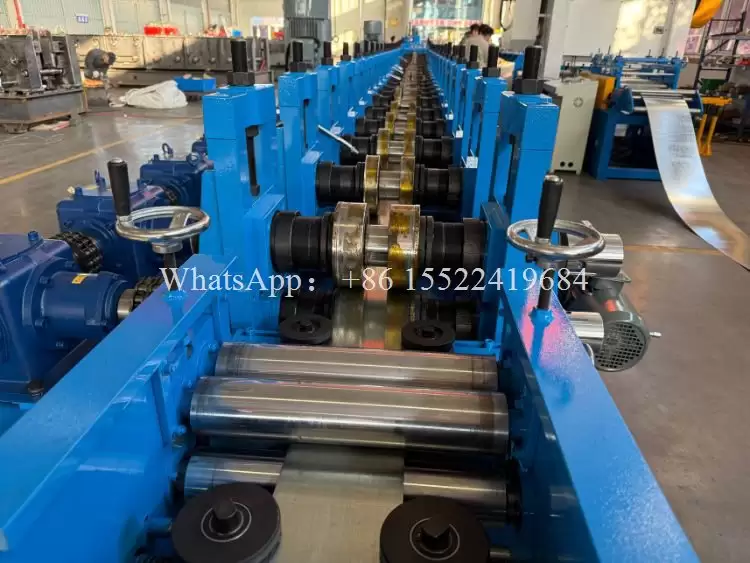

The Core Transformation: Roll Forming Part with Water Circulation
This is where the magic happens. The metal strip passes through a series of precisely engineered roller dies mounted on a robust solar strut roll forming machine. Each consecutive station incrementally bends the metal until it achieves the exact final profile—whether a C-channel, U-channel, or a custom solar panel mounting structure shape.

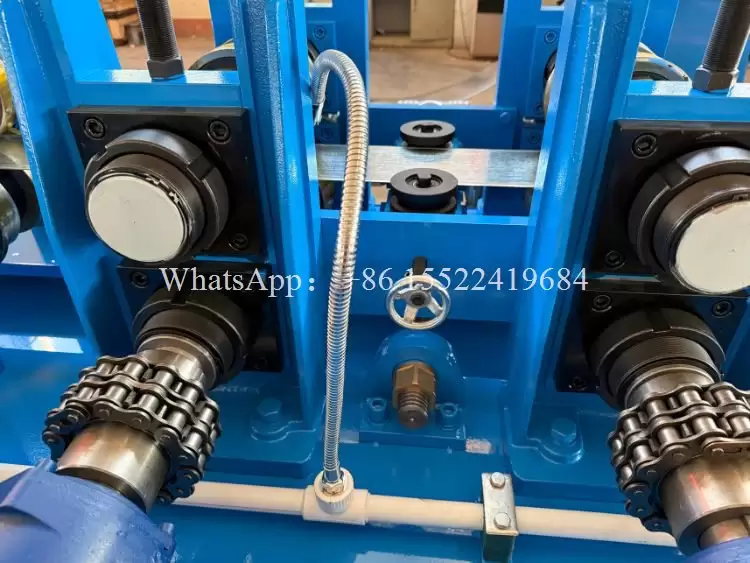

Key Feature: Integrated Water Circulation System
During high-speed forming, friction generates significant heat. Our lines incorporate a dedicated water circulation system that cools the roller dies. This protects the tooling from thermal expansion and wear, ensures consistent product dimensional accuracy, maintains the coating on pre-painted metal, and greatly extends the life of the machine.

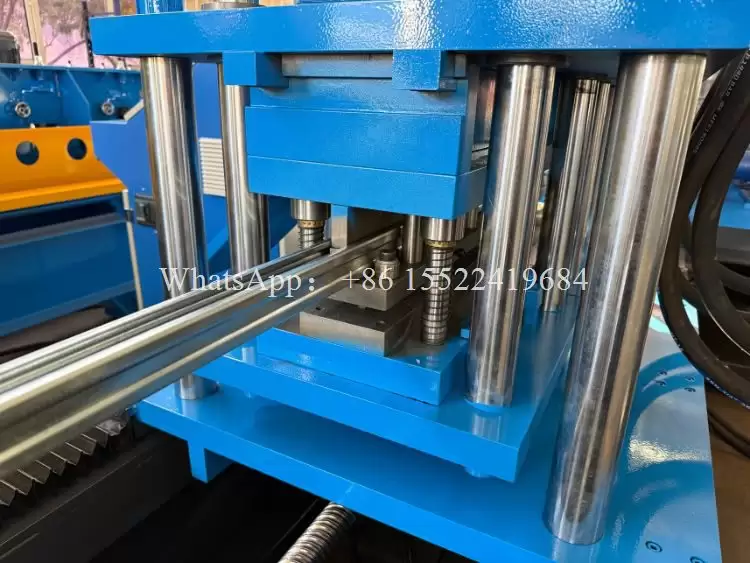

Adding Functionality: Punching Part
For brackets requiring holes for bolts, connectors, or adjustments, an in-line punching unit is essential. This high-precision solar photovoltaic bracket roll forming machine component can punch holes, notches, or slots at predetermined intervals with incredible speed and accuracy, all while the profile moves continuously, eliminating secondary processing steps.

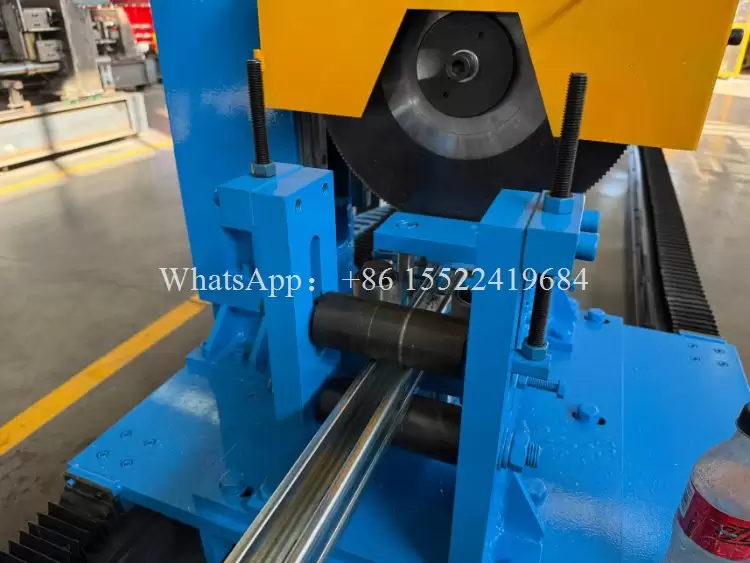

Cut-to-Length: Circular Saw Cutting
After forming and punching, the continuous profile is cut to the required length. A synchronized, servo-driven circular cutting system provides clean, burr-free cuts at exact lengths without stopping the line. This guarantees high productivity and perfect dimensional consistency for every piece of solar sturt roll forming machine output.

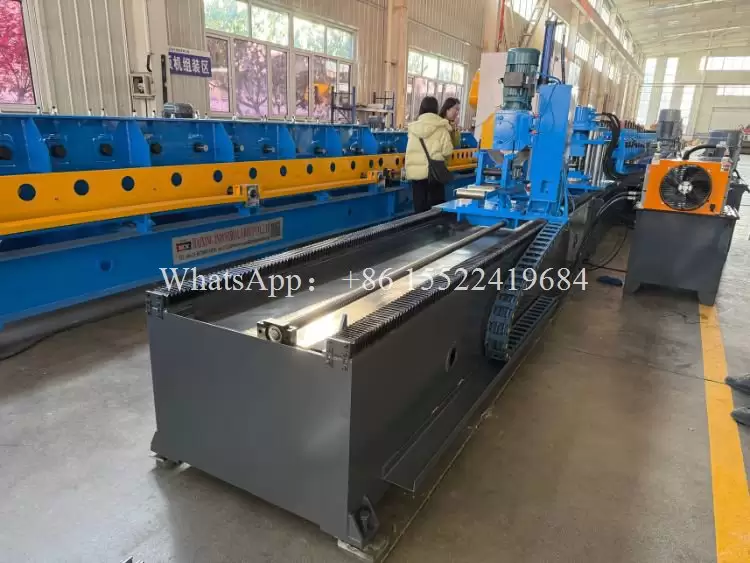

Automated Handling: Stacker
At the line's end, an automatic stacker counts, collects, and neatly bundles the finished profiles. This automation ensures orderly output, simplifies material handling, and prepares products for packaging or the next assembly stage, completing the efficient workflow of the solar-panel-mounting-structure-roll-forming-machine.
Conclusion: More Than a Machine—A Complete Production Solution
From a coil of steel to a finished, high-tolerance solar strut channel, the journey is one of engineered precision. A complete solar channel roll forming machine line—encompassing decoiler, feeder, forming station with cooling, punching, cutting, and stacking—is not merely equipment; it is a turnkey productivity and quality system.
Investing in a robust solar panel mounting structure roll forming machine line translates directly into manufacturing superiority: unparalleled consistency, reduced labor costs, minimal material waste, and the ability to produce high-strength solar panel mounting bracket profiles on demand. It is the foundational technology that empowers manufacturers to meet the growing global demand for renewable energy infrastructure with reliability and efficiency.
