Cable Tray Forming Machine

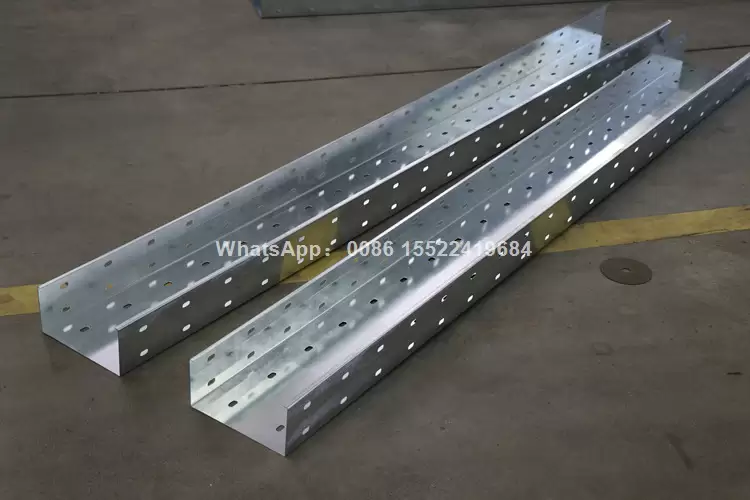

Trough Cable Tray Forming Machine Manufacturers

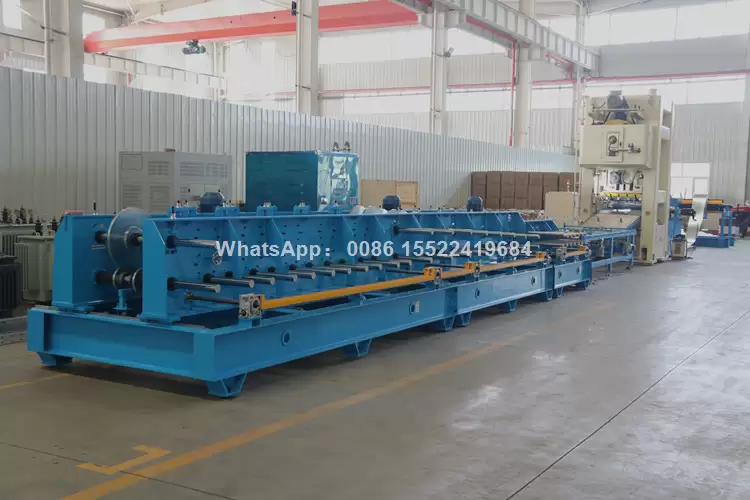

HOPEX, one of the top cable tray forming machine manufacturers, offers a high-performance solution for producing various types of cable trays. The equipment integrates punching, roll forming, cutting, and automatic stacking, ensuring smooth production with high precision and consistency.

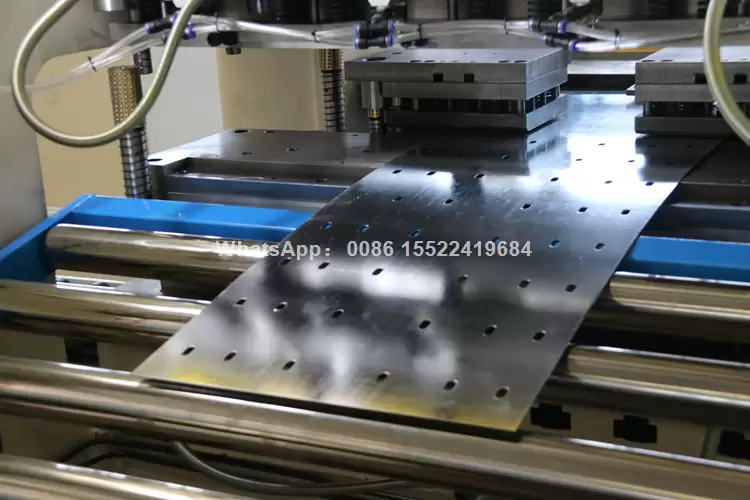

Equipped with a hydraulic punching press, it can create customizable hole patterns for better cable ventilation and load management. The PLC automatic control system allows synchronized operation, reducing labor and material waste.

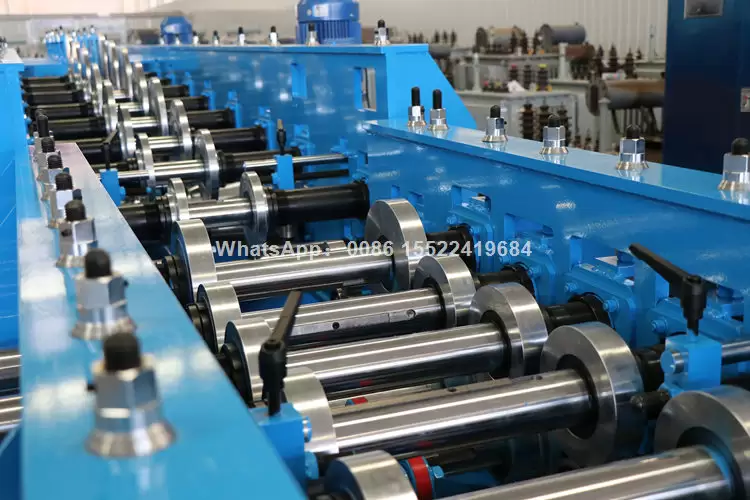

Built with robust steel structure and hardened rollers, the HOPEX cable tray forming machine guarantees durability, accuracy, and long service life. It’s an ideal choice for manufacturers aiming to improve efficiency and maintain high-quality standards in cable tray production.
Contact us for a quote on cable tray forming machine manufacturers！
Cable Tray Forming Machine Manufacturers TFCHNICAL PARAMETEF
| Model parameters | 800/200 |
| Equipment footprint | 36*2.5*2(L*W*H)m |
| Rolling strip width | 200-1250mm |
| Rolling strip thickness | 0.5-2.5mm |
| Product specifications | 800/200-100/50 |
| Total installed capacity of equipment | About 60KW |
| Rolling strip material | Q235 cold-rolled strip steel,galvanized sheet |
| Online punching and production speed | 6-10 meters/minute including punching connection holes (determined by product length and punching quantity,excluding punching tray holes) |
| Rolling workpiece length | 2000mm/3000mm |
| Explosion proof grade of motor | ExdlICT4 |
| Motor protection level | IP55 |
