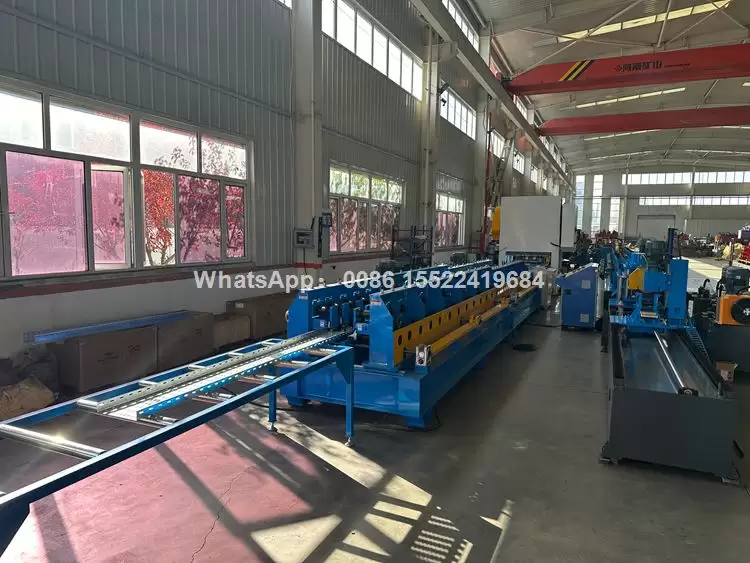

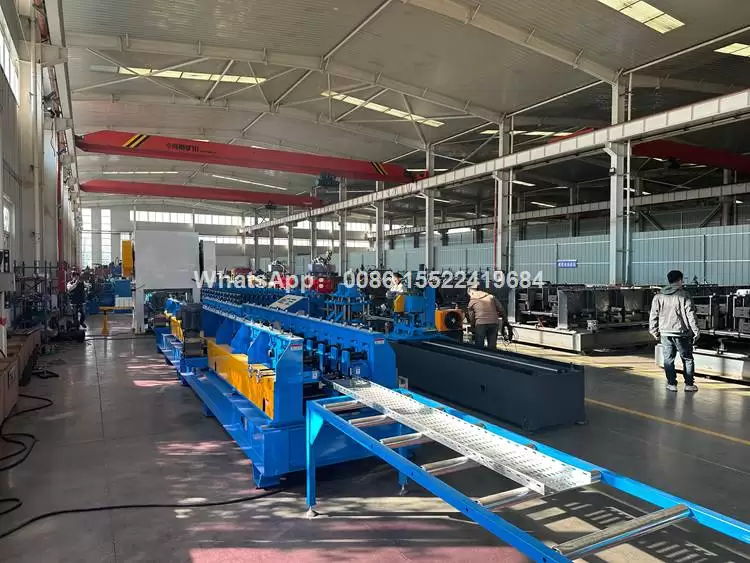

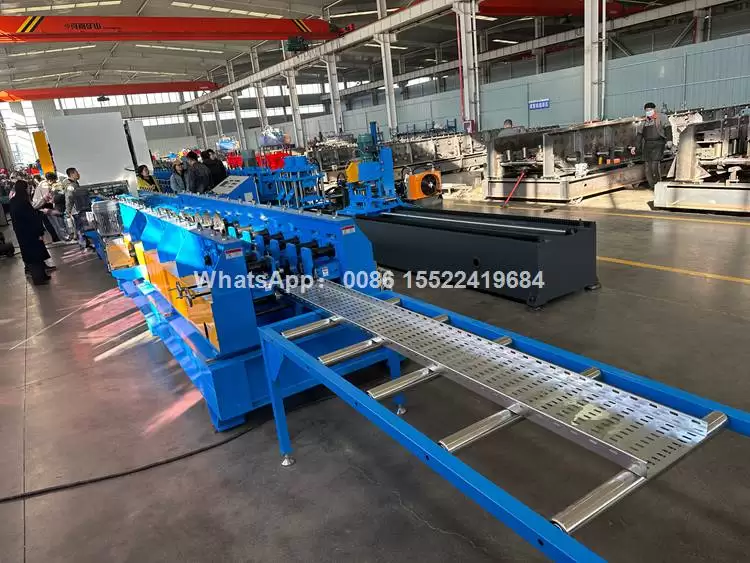

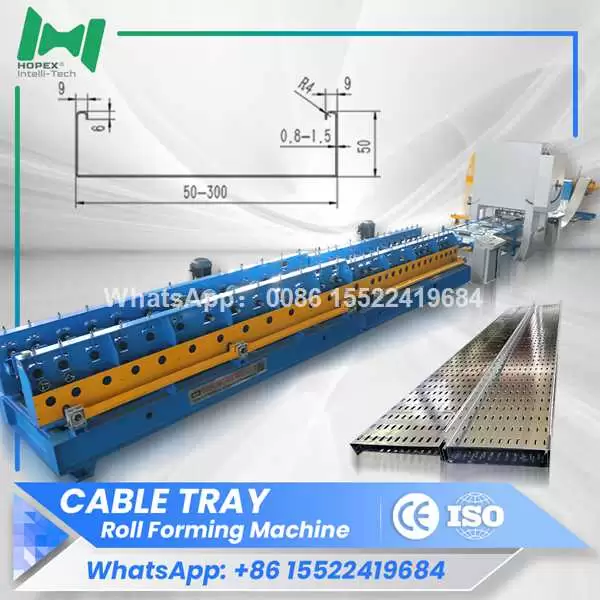

Cable Tray Cutting Machine for Perforated Trays
The HOPEX cable tray cutting machine is designed for precise and efficient cutting of perforated cable trays with widths ranging from 50 to 300 mm and a side height of 50 mm. This machine is ideal for industrial and commercial electrical installations where high accuracy and productivity are required.
Integrated with a roll forming system, punching unit, and automatic cutting device, the machine ensures seamless production of uniform cable trays. The cutting mechanism is adjustable, enabling operators to customize tray lengths and maintain consistent perforation quality. With a production speed of 5–12 meters per minute, it combines high output with precision and reliability, reducing material waste and improving efficiency.
Equipped with a PLC control system, the HOPEX cable tray cutting machine allows easy operation, real-time monitoring, and quick adjustments for different tray specifications. Its sturdy construction and high-quality components ensure long-term durability and low maintenance requirements. Perfect for factories and electrical contractors producing perforated cable trays, this machine guarantees superior performance, cost-effectiveness, and reliable results in cable management projects.
Contact us for a quote on cable tray cutting machine！
perforated cable tray cutting machine TFCHNICAL PARAMETEF
| Model parameters | 50-300 |
| Equipment footprint | 30*2.5*2(L*W*H)m |
| Rolling strip width | 150-450mm |
| Rolling strip thickness | 0.5-1.5mm |
| Product specifications | 300/50-50/50 |
| Total installed capacity of equipment | About 50KW |
| Rolling strip material | Q235 cold-rolled strip steel,galvanized sheet |
| Online punching and production speed | 6-10 meters/minute including punching connection holes (determined by product length and punching quantity,excluding punching tray holes) |
| Rolling workpiece length | 2500mm |
| Explosion proof grade of motor | ExdlICT4 |
| Motor protection level | IP55 |
Contact us for a quote on cable tray cutting machine！
