Cable tray production line
Trough Cable tray production line for Electrical Projects

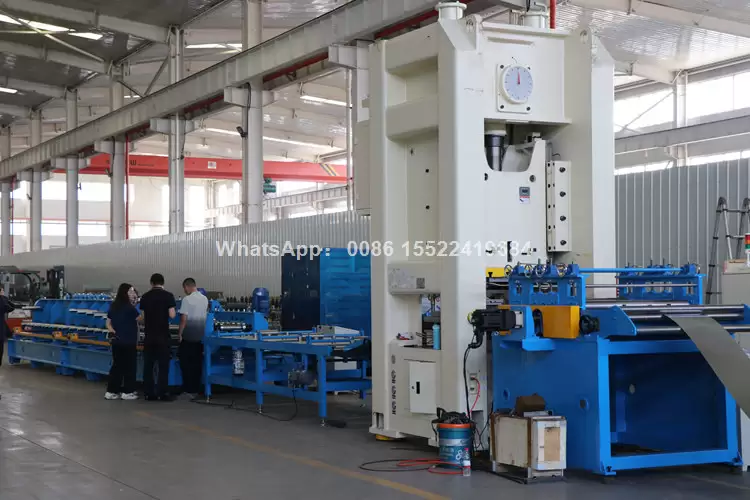

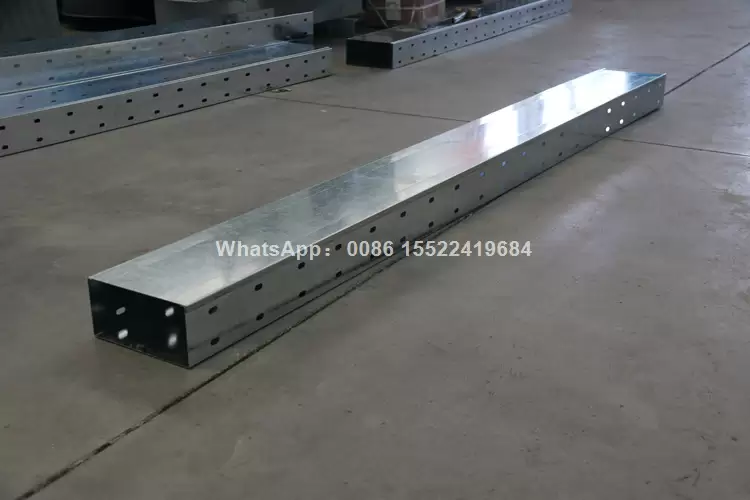

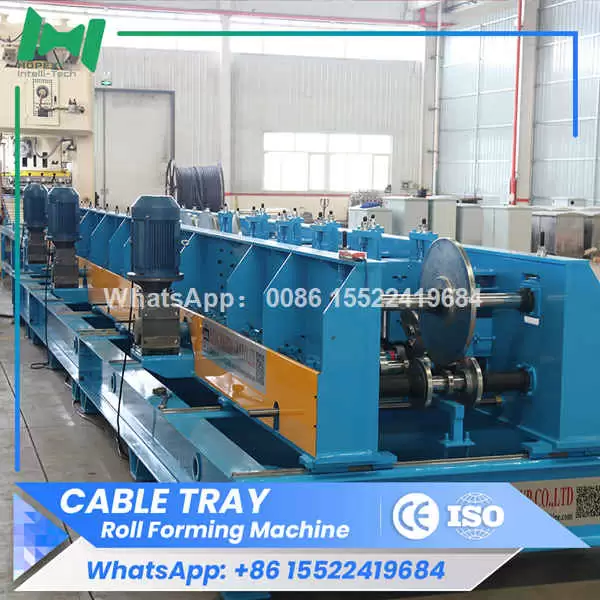

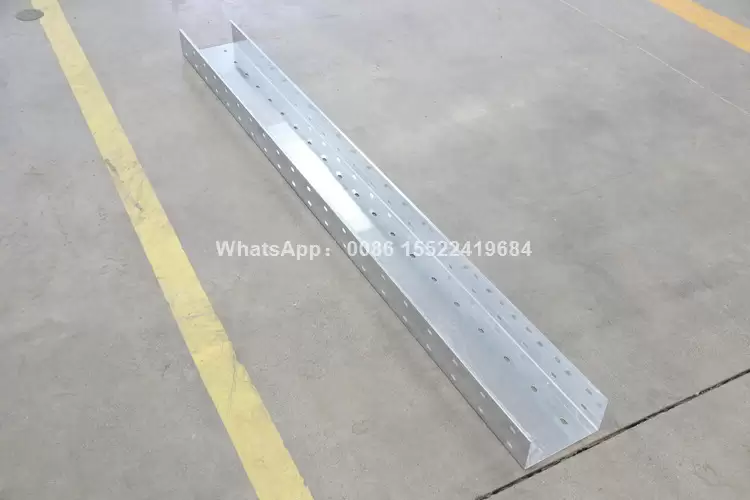

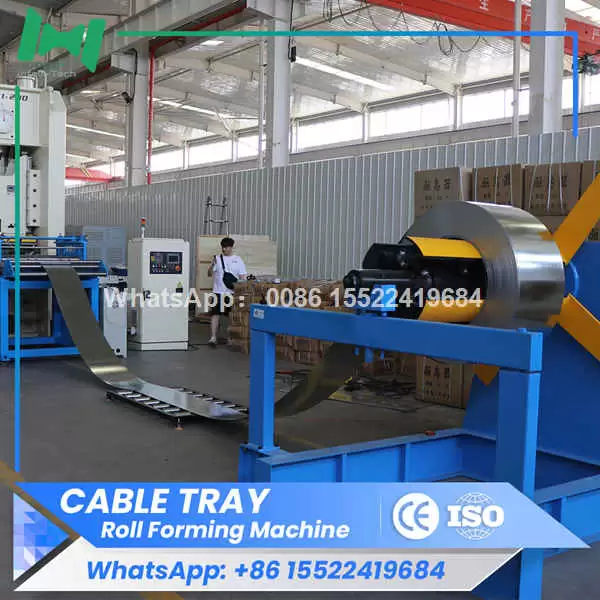

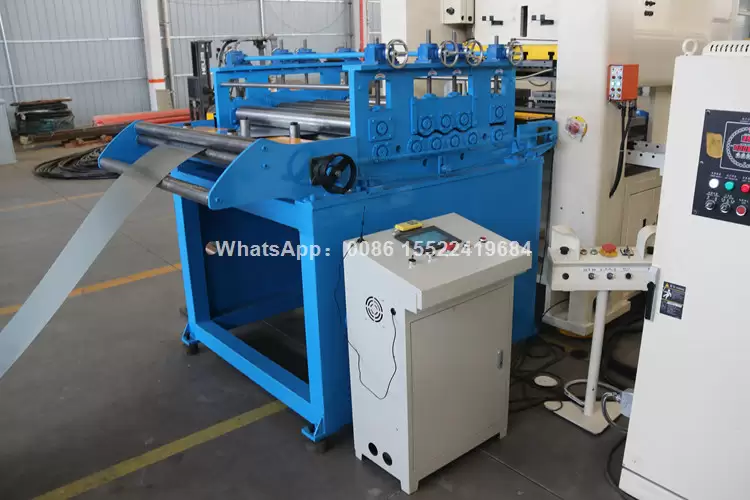

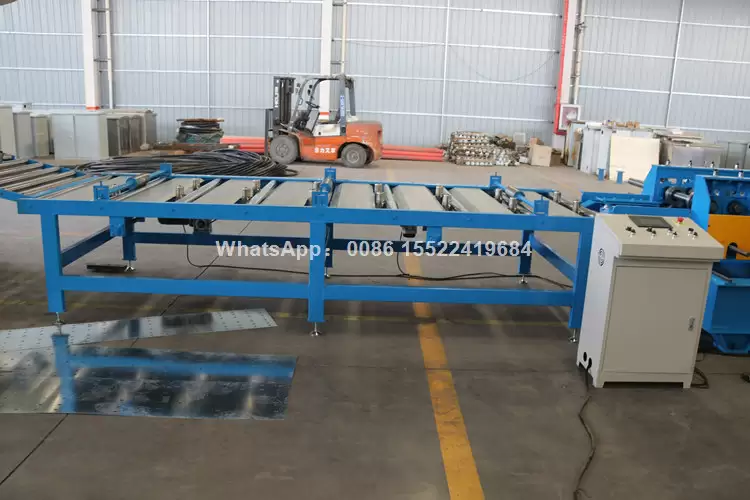

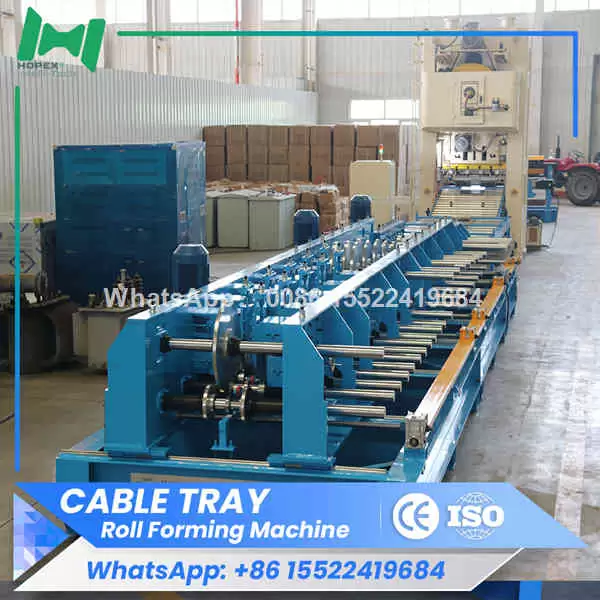

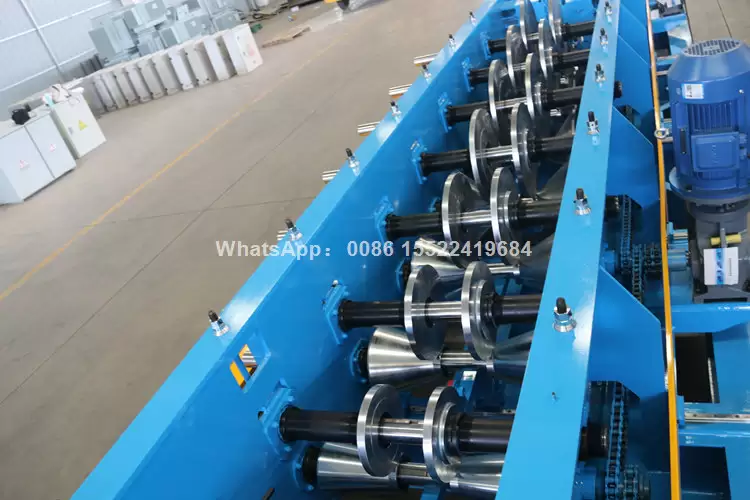

The HOPEX cable tray production line is designed for manufacturing perforated and solid cable trays used in electrical wiring management systems. This automated line includes a hydraulic punching press, roll forming machine, cutting unit, and control system to ensure continuous and precise operation. The punching station can create customized holes and slots, while the forming section guarantees smooth bending and accurate tray dimensions. Built with durable components and an advanced PLC control system, this production line offers high speed, low noise, and easy operation. It is ideal for producing trough-type or ladder-type cable trays widely used in construction, power plants, and industrial facilities. HOPEX provides complete solutions, including design customization and installation support, helping customers achieve efficient and reliable cable tray manufacturing.
Contact us for a quote on cable tray machines！
Trough cable tray production line TFCHNICAL PARAMETEF
| Model parameters | 800/200 |
| Equipment footprint | 36*2.5*2(L*W*H)m |
| Rolling strip width | 200-1250mm |
| Rolling strip thickness | 0.5-2.5mm |
| Product specifications | 800/200-100/50 |
| Total installed capacity of equipment | About 60KW |
| Rolling strip material | Q235 cold-rolled strip steel,galvanized sheet |
| Online punching and production speed | 6-10 meters/minute including punching connection holes (determined by product length and punching quantity,excluding punching tray holes) |
| Rolling workpiece length | 2000mm/3000mm |
| Explosion proof grade of motor | ExdlICT4 |
| Motor protection level | IP55 |
Contact us for a quote on cable tray production line！
