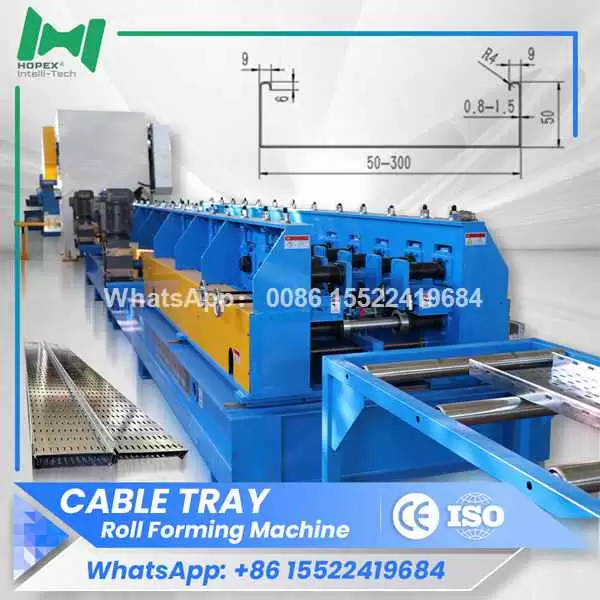

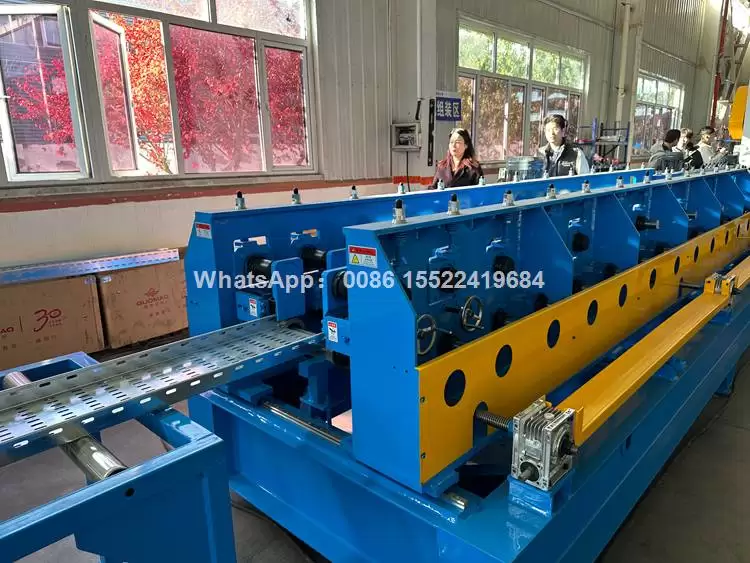

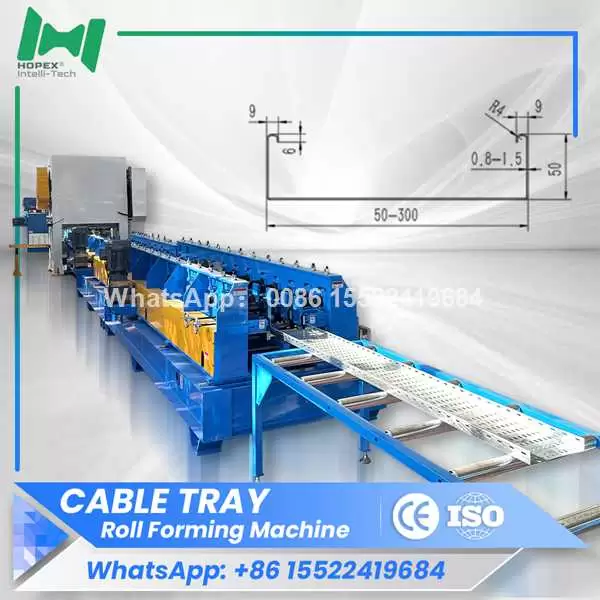

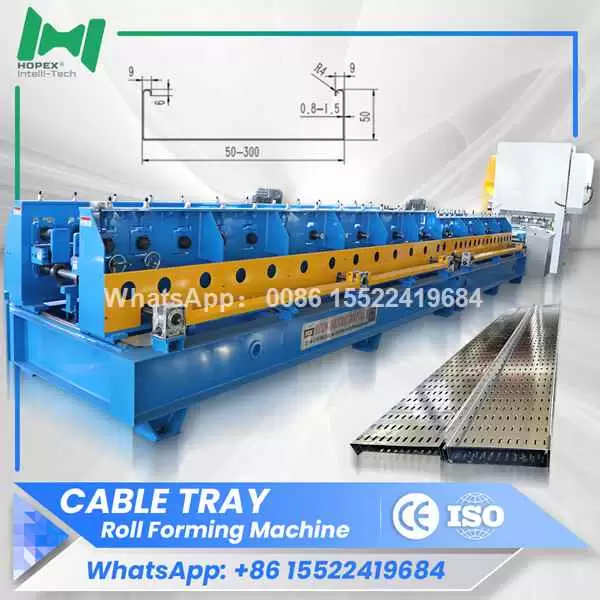

Perforated Cable Tray Roll Forming Machine

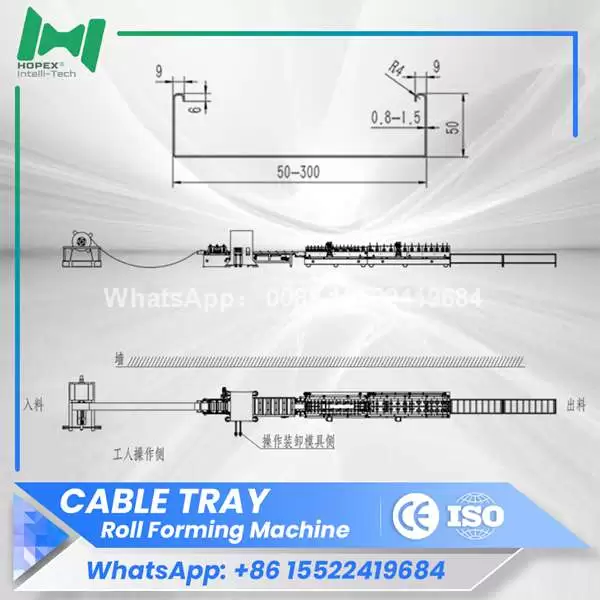

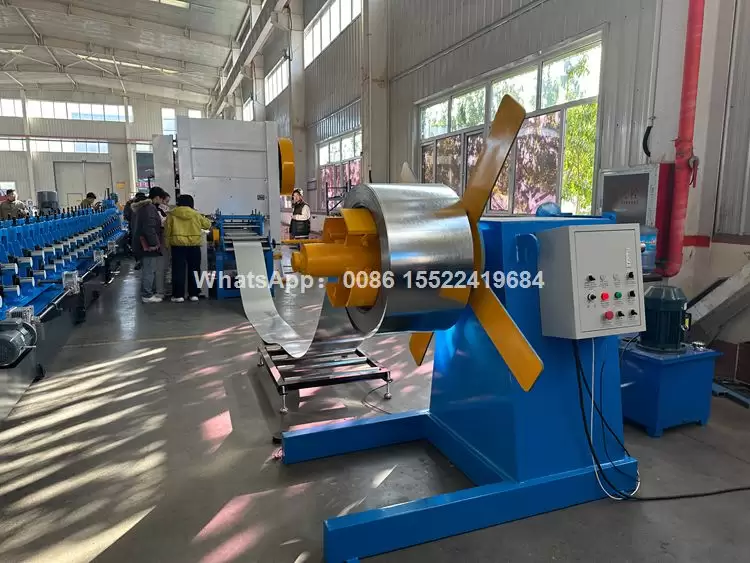

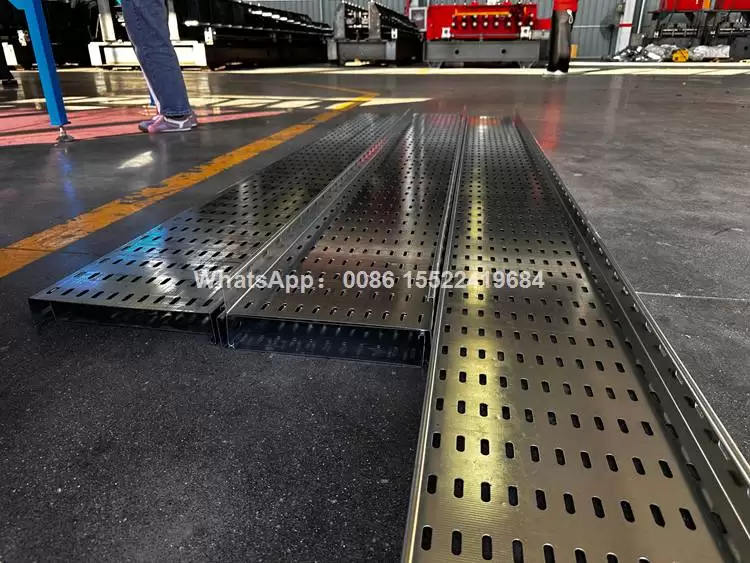

The HOPEX perforated cable tray roll forming machine is engineered to produce high-quality cable trays with widths ranging from 50 to 300 mm. Designed for modern electrical and industrial installations, this machine integrates decoiling, leveling, servo punching, roll forming, and automatic cutting into a smooth and efficient production line. With a working speed of 5–12 meters per minute, it ensures fast output while maintaining precise dimensions and clean perforations.
The advanced servo punching system allows customizable hole patterns to meet various ventilation and cable management requirements. Hardened forming rollers and a reinforced machine frame guarantee long-term durability, consistent forming accuracy, and reduced maintenance needs. The PLC touchscreen control system enables operators to adjust parameters easily, ensuring stable performance and quick product switching.

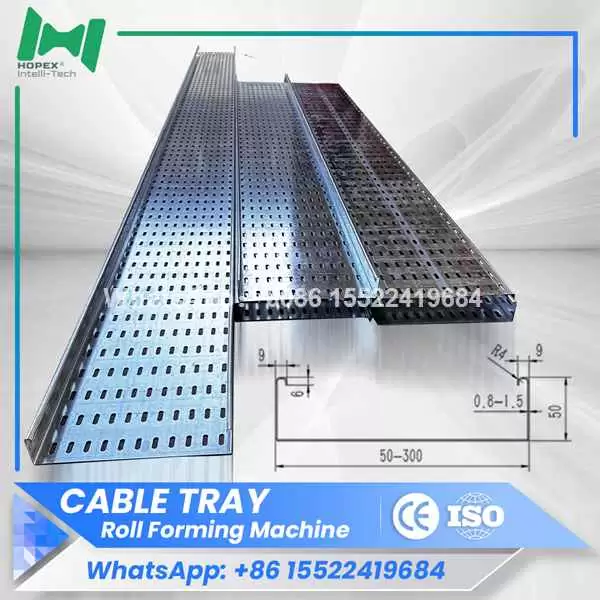

This production line is ideal for manufacturers seeking a reliable solution for perforated cable trays used in power distribution, industrial plants, commercial buildings, and infrastructure projects. With high efficiency, strong structural performance, and excellent product consistency, the HOPEX perforated cable tray roll forming machine delivers a cost-effective and high-productivity manufacturing experience.
Contact us for a quote on perforated cable tray roll forming machine！
perforated cable tray roll forming machine TFCHNICAL PARAMETEF
| Model parameters | 50-300 |
| Equipment footprint | 30*2.5*2(L*W*H)m |
| Rolling strip width | 150-450mm |
| Rolling strip thickness | 0.5-1.5mm |
| Product specifications | 300/50-50/50 |
| Total installed capacity of equipment | About 50KW |
| Rolling strip material | Q235 cold-rolled strip steel,galvanized sheet |
| Online punching and production speed | 6-10 meters/minute including punching connection holes (determined by product length and punching quantity,excluding punching tray holes) |
| Rolling workpiece length | 2500mm |
| Explosion proof grade of motor | ExdlICT4 |
| Motor protection level | IP55 |
Contact us for a quote on perforated cable tray roll forming machine！

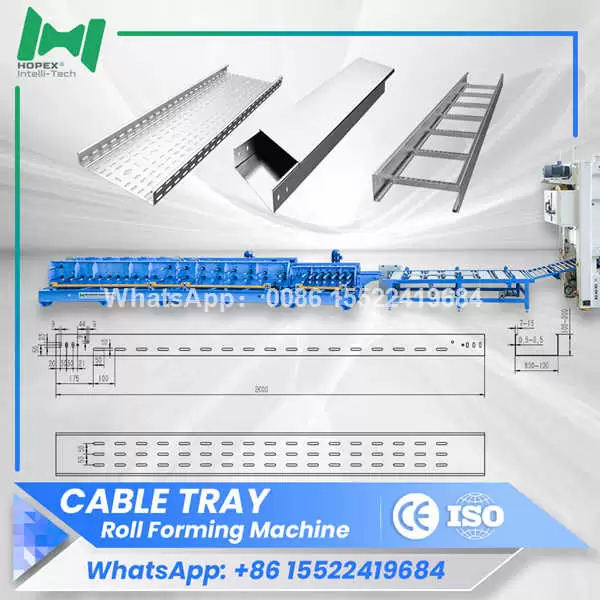

Other related machines
