Cable Tray Forming Machine
Cable Tray Forming Machine with Punching

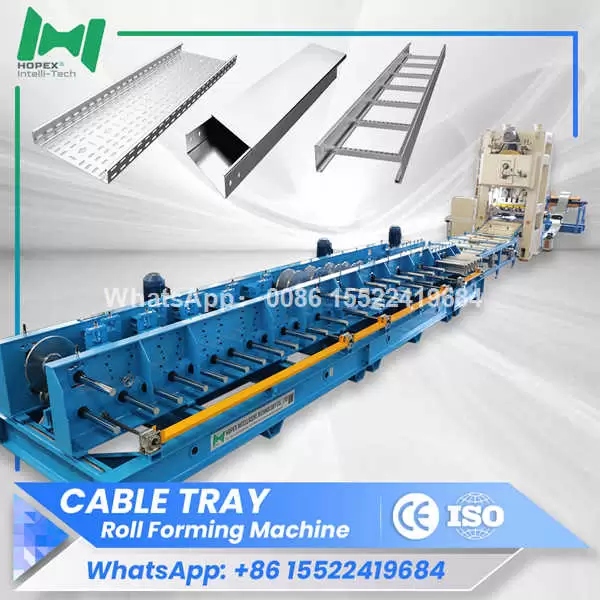

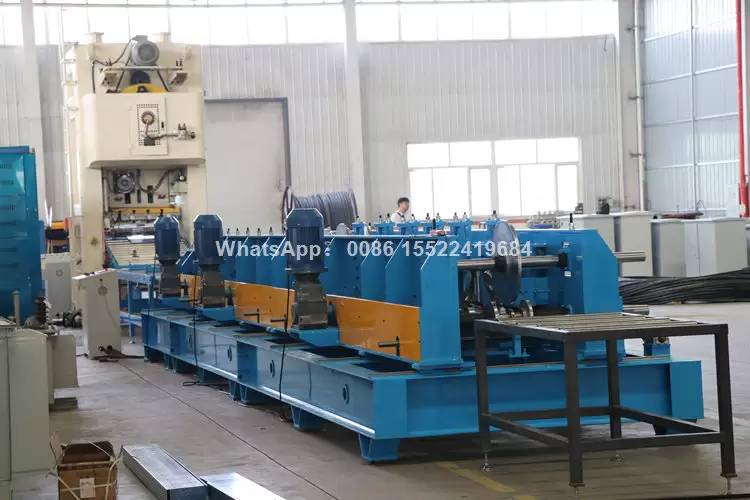

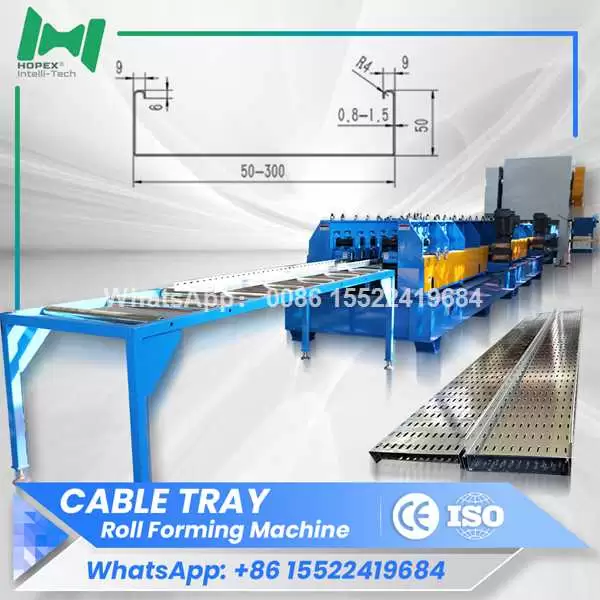

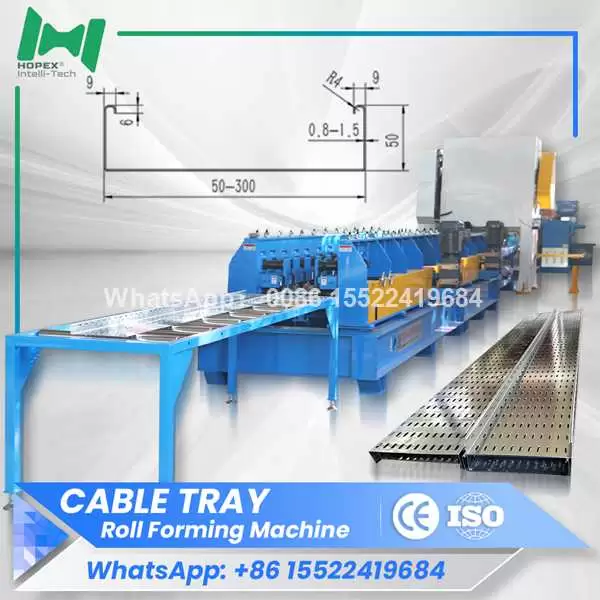

The HOPEX cable tray forming machine with punching system is a fully automatic production line designed to manufacture high-quality cable trays for electrical and industrial installations. Equipped with a hydraulic punching press, it enables precise hole patterns and customized slot designs.

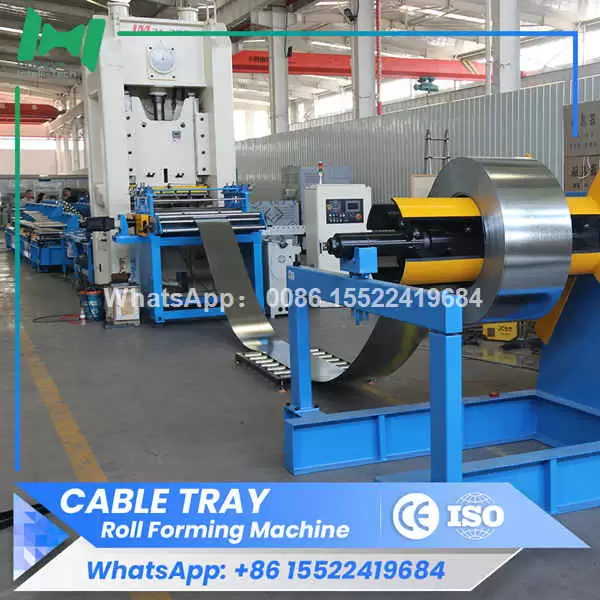

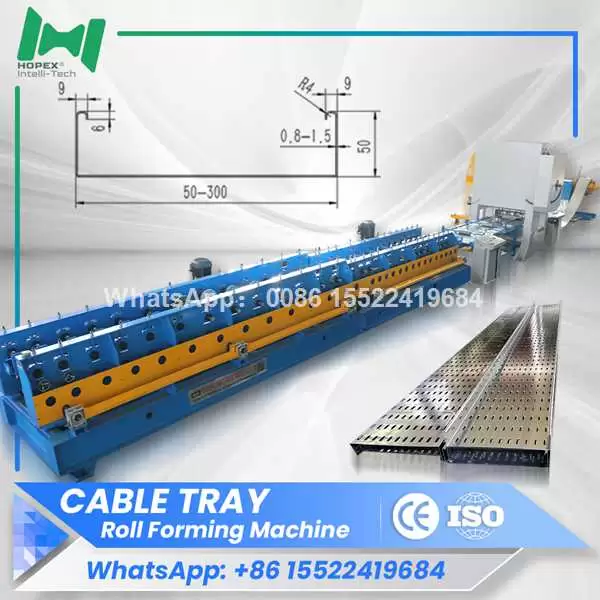

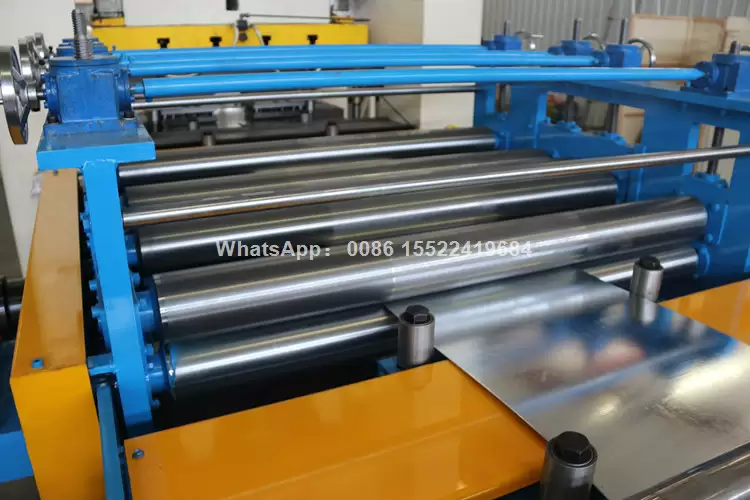

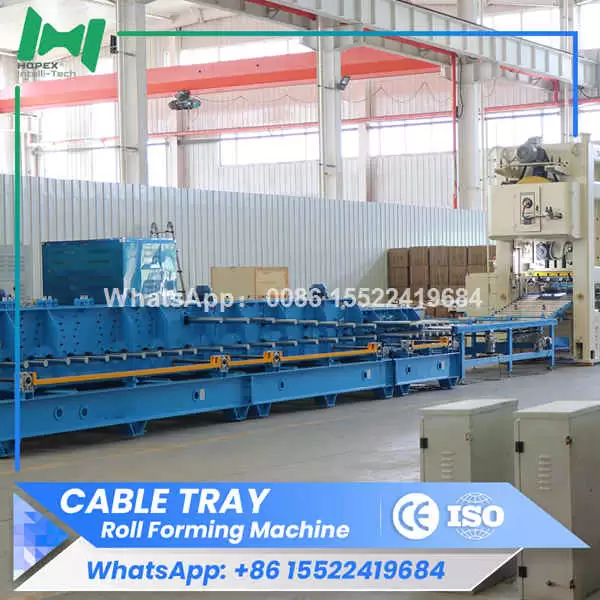

This advanced line integrates decoiler, leveling, punching, roll forming, cutting, and automatic stacking for smooth and efficient operation. The PLC control system ensures accurate synchronization and easy operation, reducing waste and increasing productivity.

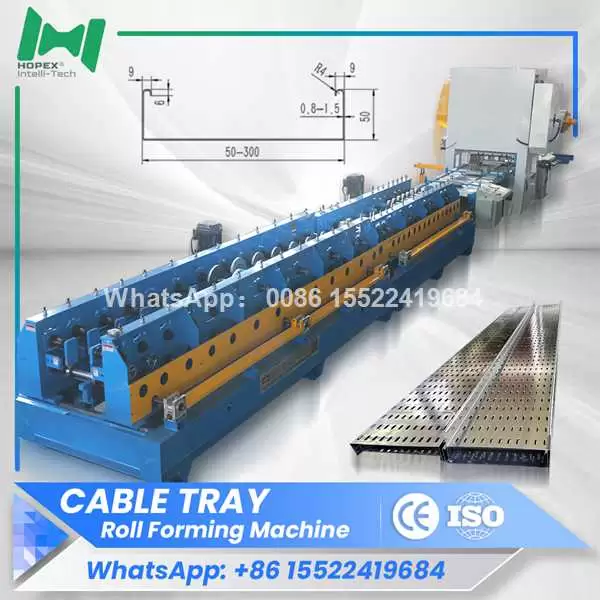

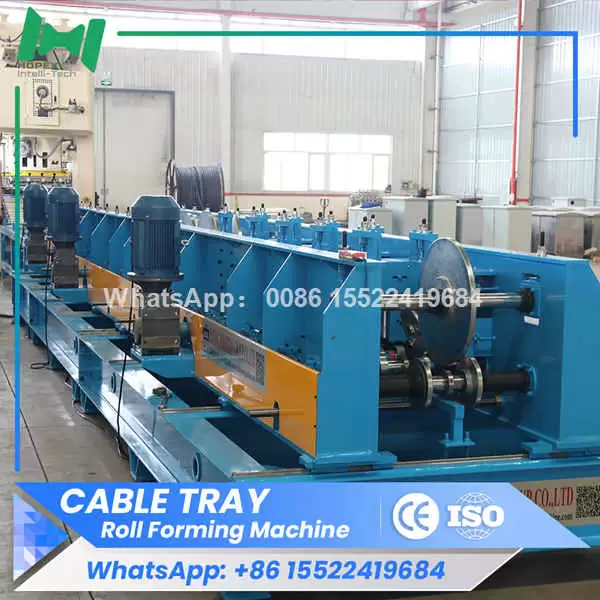

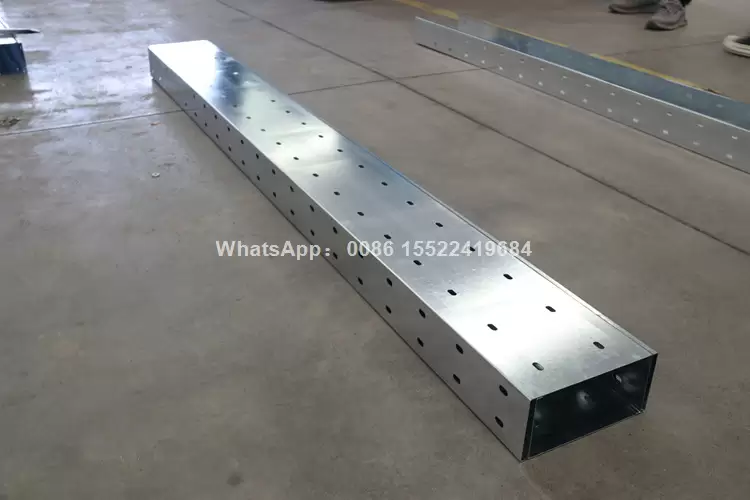

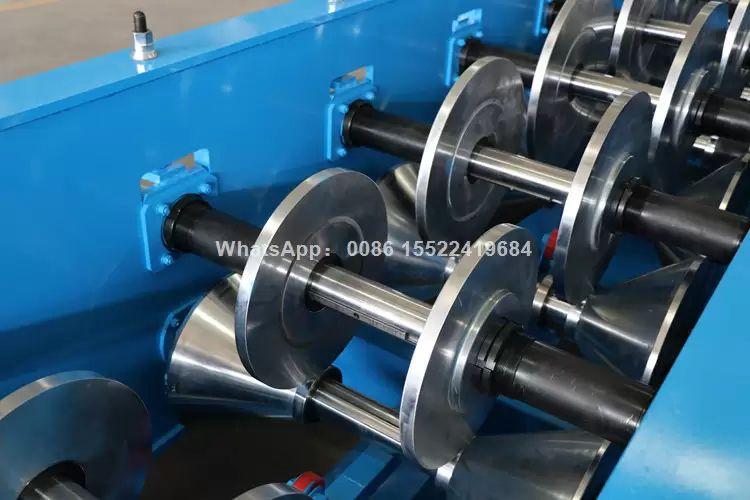

Built with hardened rollers and a durable frame, the machine provides consistent performance for both perforated and non-perforated cable trays in various sizes and thicknesses.
Ideal for large-scale cable tray manufacturers, the HOPEX cable tray forming machine guarantees stability, efficiency, and precision to meet global standards.
Contact us for a quote on cable tray forming machine！
Cable Tray Forming Machine with Punching TFCHNICAL PARAMETEF
| Model parameters | 800/200 |
| Equipment footprint | 36*2.5*2(L*W*H)m |
| Rolling strip width | 200-1250mm |
| Rolling strip thickness | 0.5-2.5mm |
| Product specifications | 800/200-100/50 |
| Total installed capacity of equipment | About 60KW |
| Rolling strip material | Q235 cold-rolled strip steel,galvanized sheet |
| Online punching and production speed | 6-10 meters/minute including punching connection holes (determined by product length and punching quantity,excluding punching tray holes) |
| Rolling workpiece length | 2000mm/3000mm |
| Explosion proof grade of motor | ExdlICT4 |
| Motor protection level | IP55 |
Contact us for a quote on cable tray forming machine！
