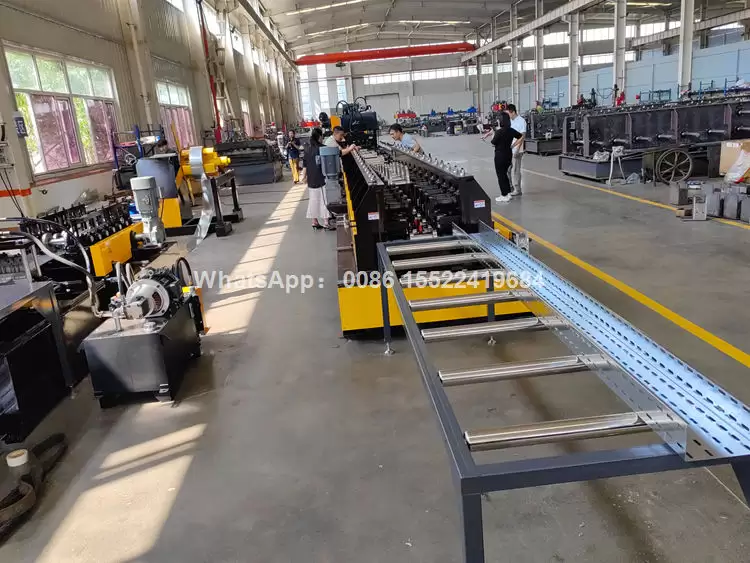

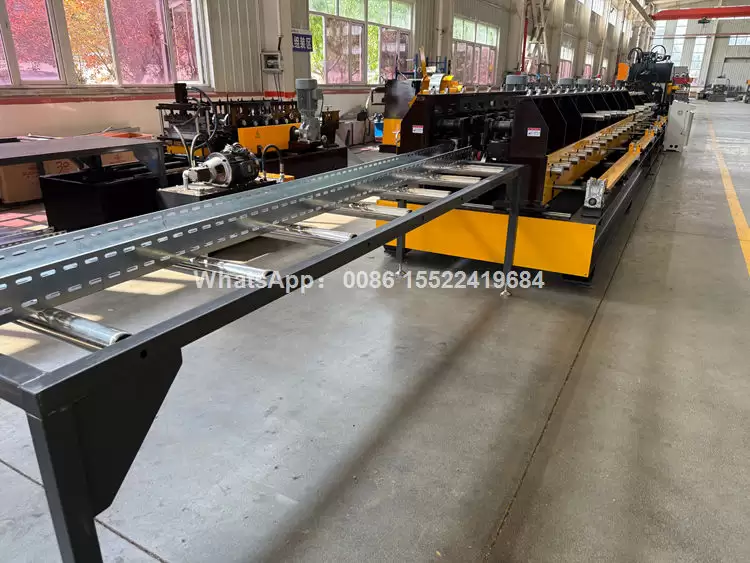

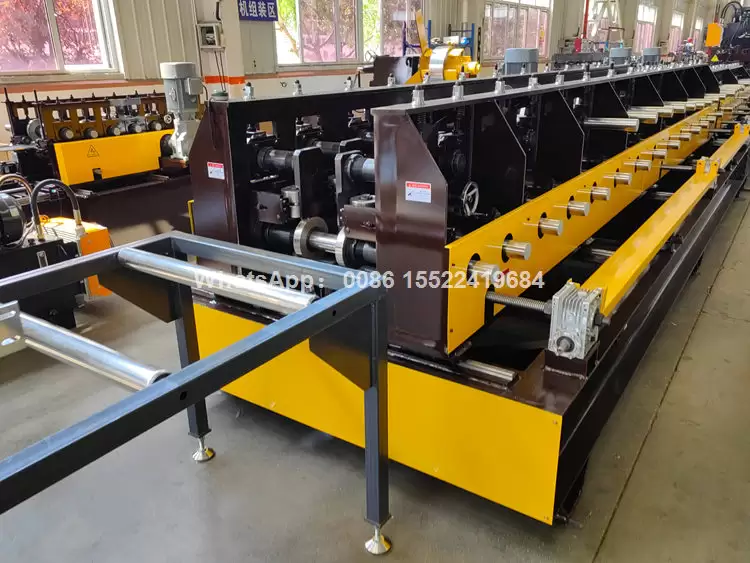

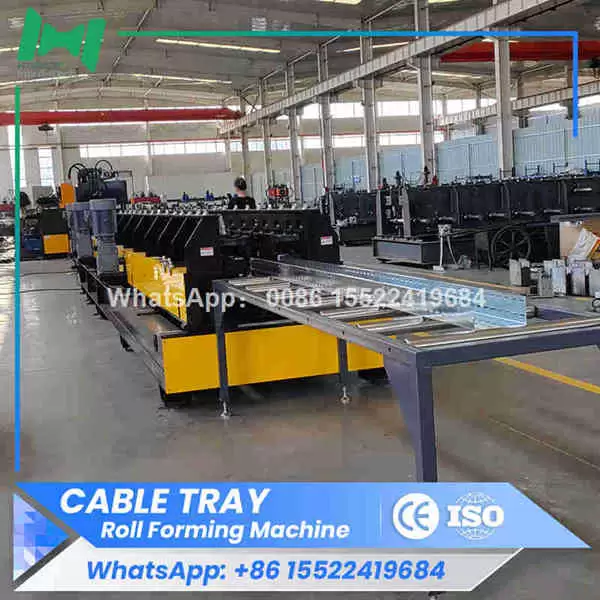

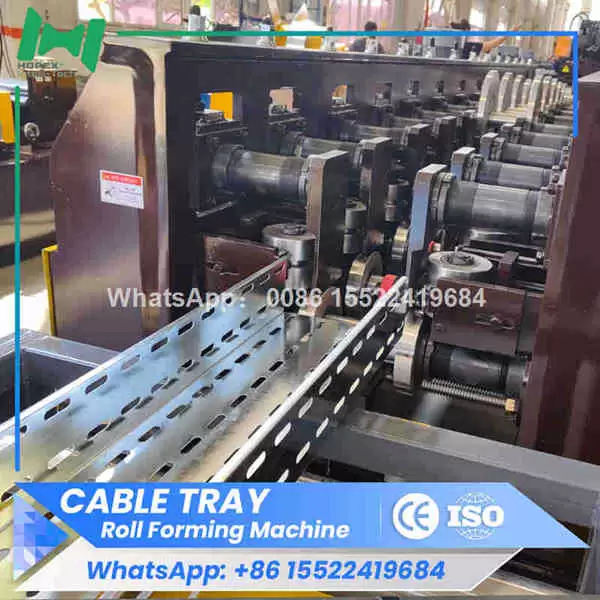

Cable Tray Making Machine for Trough Trays
The cable tray making machine is an advanced production line designed for trough-type cable trays. It integrates roll forming, punching, and cutting into one continuous process, delivering trays with precise dimensions, smooth edges, and consistent quality.

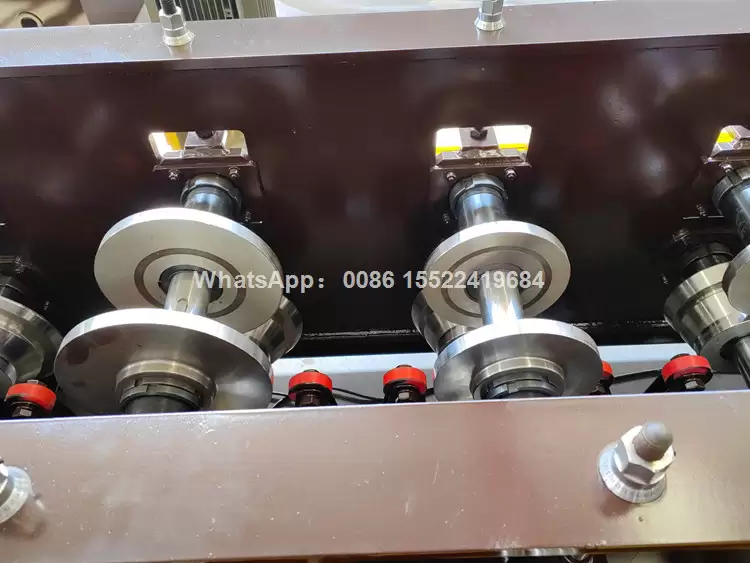

This machine is equipped with a PLC control system, hydraulic punching, and high-strength rollers, ensuring stable operation, long durability, and minimal manual intervention. It is capable of producing trough cable trays in various sizes and thicknesses to meet different industrial and commercial requirements.
The cable tray making machine is widely applied in power plants, factories, office buildings, and infrastructure projects. Its customizable design allows manufacturers to produce cable tray systems that are corrosion-resistant, durable, and compliant with international standards. With high efficiency and reduced labor costs, it provides an ideal solution for mass production of cable trays.
Contact us for a quote on cable tray making machine！
Cable Tray Making Machine for Trough Trays TFCHNICAL PARAMETEF
| Model parameters | 800/200 |
| Equipment footprint | 36*2.5*2(L*W*H)m |
| Rolling strip width | 200-1250mm |
| Rolling strip thickness | 0.5-2.5mm |
| Product specifications | 800/200-100/50 |
| Total installed capacity of equipment | About 60KW |
| Rolling strip material | Q235 cold-rolled strip steel,galvanized sheet |
| Online punching and production speed | 6-10 meters/minute including punching connection holes (determined by product length and punching quantity,excluding punching tray holes) |
| Rolling workpiece length | 2000mm/3000mm |
| Explosion proof grade of motor | ExdlICT4 |
| Motor protection level | IP55 |
Contact us for a quote on cable tray making machine！
