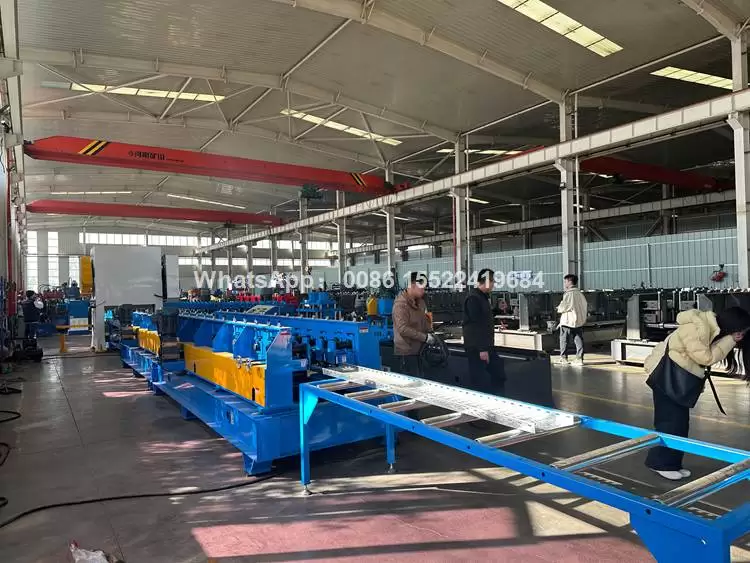

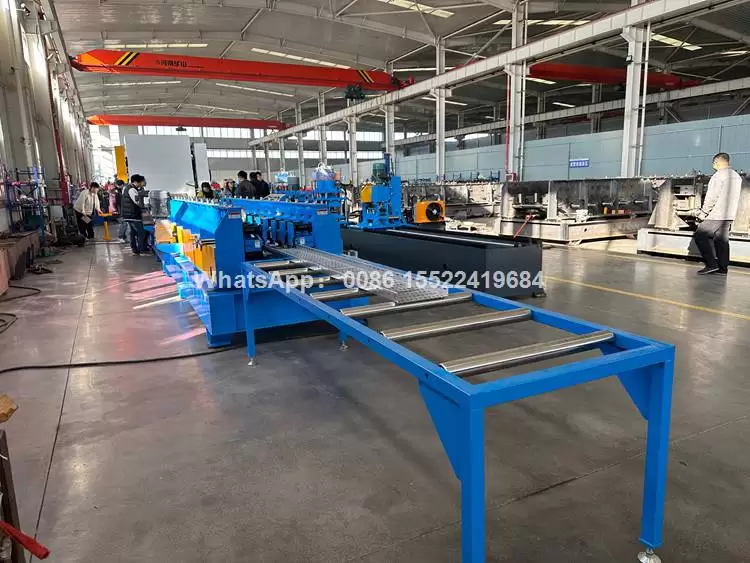

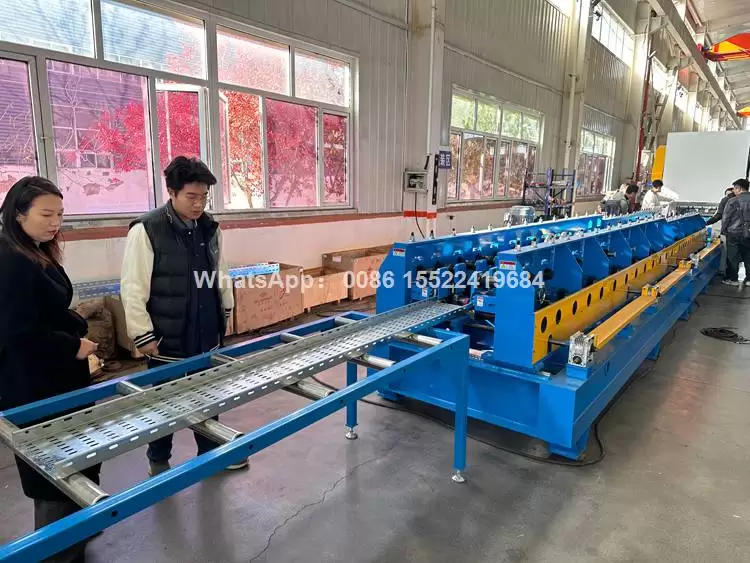

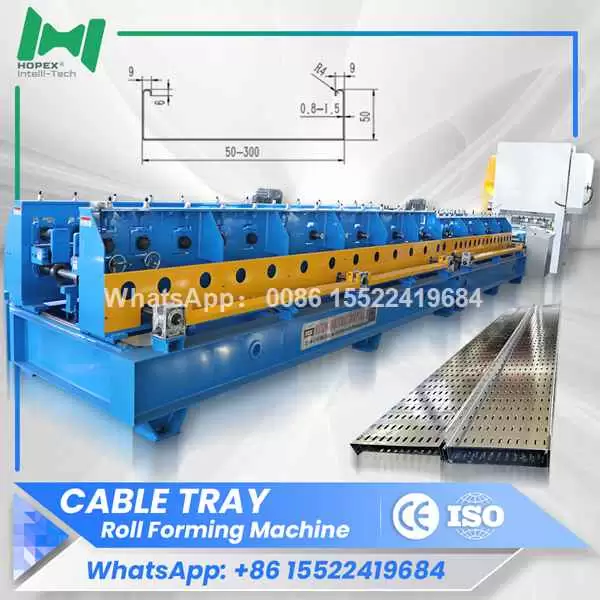

Tray Roll Forming Machine

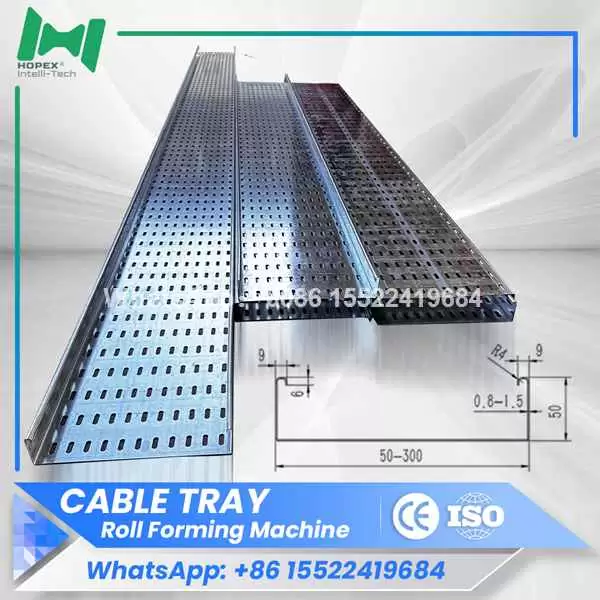

The HOPEX tray roll forming machine is a high-performance solution for manufacturing perforated cable trays with widths ranging from 50 to 300 mm. Designed to meet modern industrial and commercial electrical installation needs, this machine integrates decoiling, leveling, precision punching, roll forming, and automatic cutting into a seamless production line.
With a production speed of 5–12 meters per minute, the machine ensures fast output while maintaining accurate dimensions and clean perforations. Its advanced punching system allows customizable hole patterns to optimize ventilation and cable management requirements. The robust construction, including hardened forming rollers and reinforced frames, guarantees long-term durability, consistent forming quality, and minimal maintenance.
Equipped with a user-friendly PLC touchscreen, operators can easily adjust settings for various tray specifications and switch products quickly. Ideal for factories producing perforated cable trays for power distribution, commercial buildings, and industrial facilities, the HOPEX tray roll forming machine combines efficiency, precision, and reliability, delivering superior productivity and cost-effectiveness. This machine is the ultimate choice for businesses aiming for high-quality cable management solutions.
Contact us for a quote on tray roll forming machine！

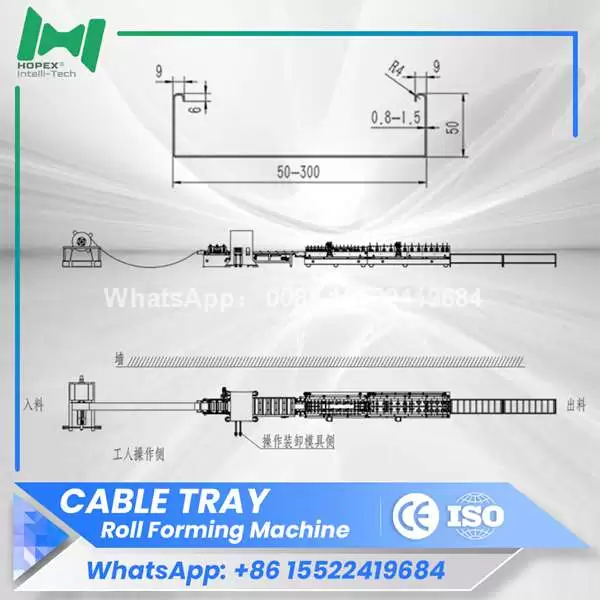

perforated cable tray roll forming machine TFCHNICAL PARAMETEF
| Model parameters | 50-300 |
| Equipment footprint | 30*2.5*2(L*W*H)m |
| Rolling strip width | 150-450mm |
| Rolling strip thickness | 0.5-1.5mm |
| Product specifications | 300/50-50/50 |
| Total installed capacity of equipment | About 50KW |
| Rolling strip material | Q235 cold-rolled strip steel,galvanized sheet |
| Online punching and production speed | 6-10 meters/minute including punching connection holes (determined by product length and punching quantity,excluding punching tray holes) |
| Rolling workpiece length | 2500mm |
| Explosion proof grade of motor | ExdlICT4 |
| Motor protection level | IP55 |
Contact us for a quote on tray roll forming machine！
