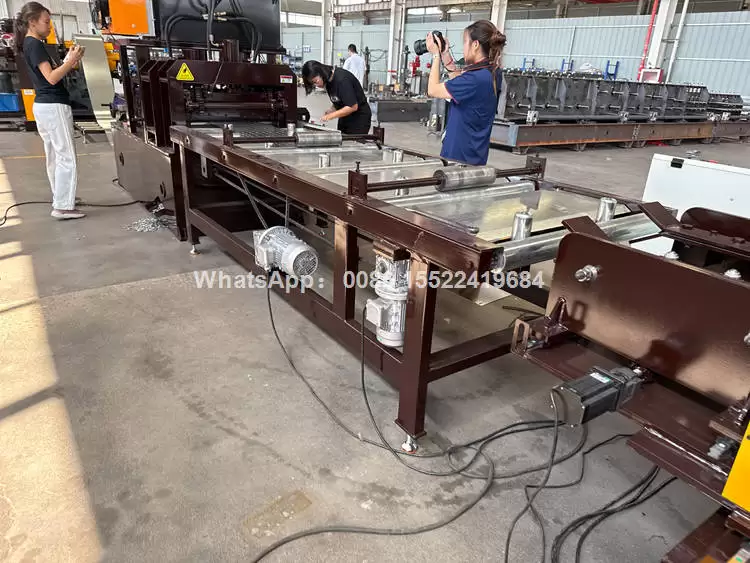

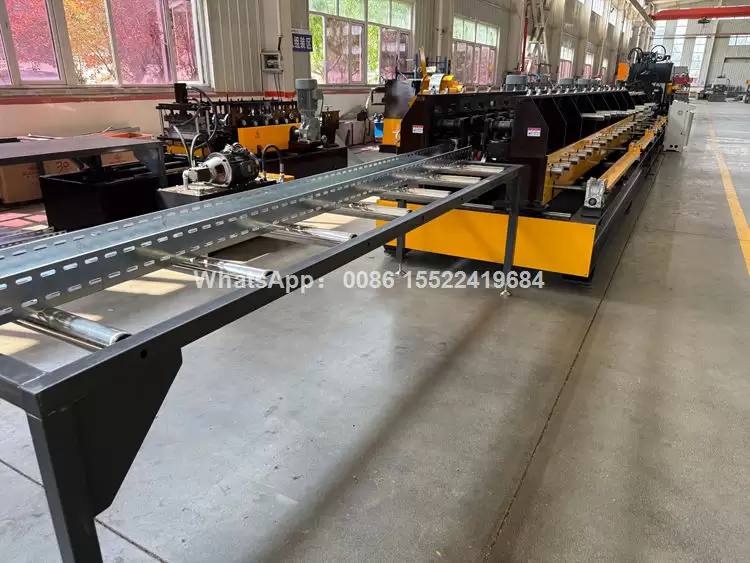

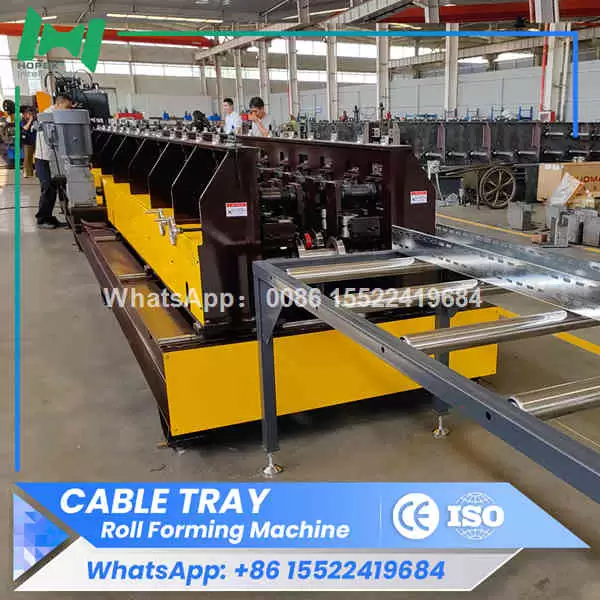

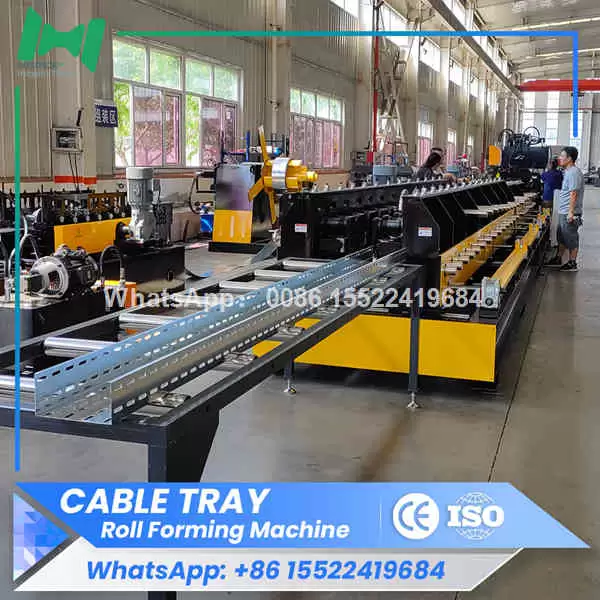

Cable Tray Punching Machine for Trough Trays

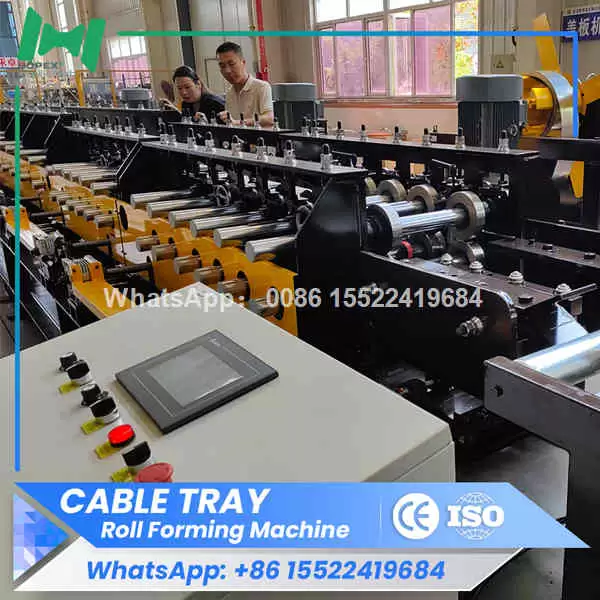

The cable tray punching machine is a specialized production line for manufacturing trough-type cable trays. It combines roll forming, hydraulic punching, and precise cutting in one continuous process. With its advanced PLC control system and automated functions, the machine ensures consistent accuracy, smooth finishes, and high productivity.

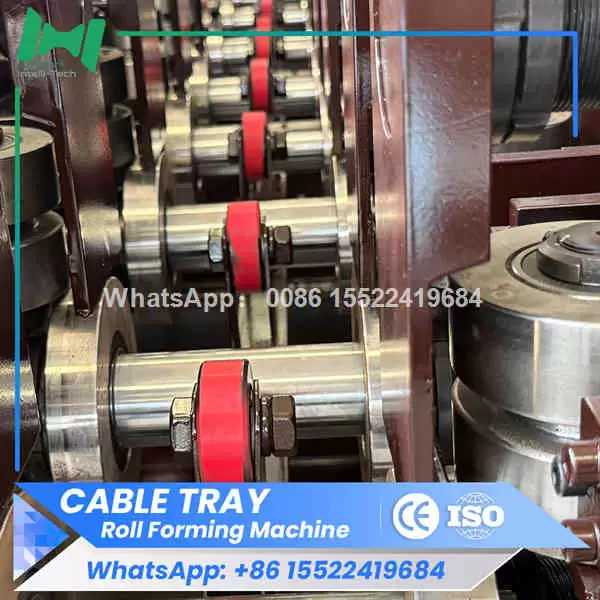

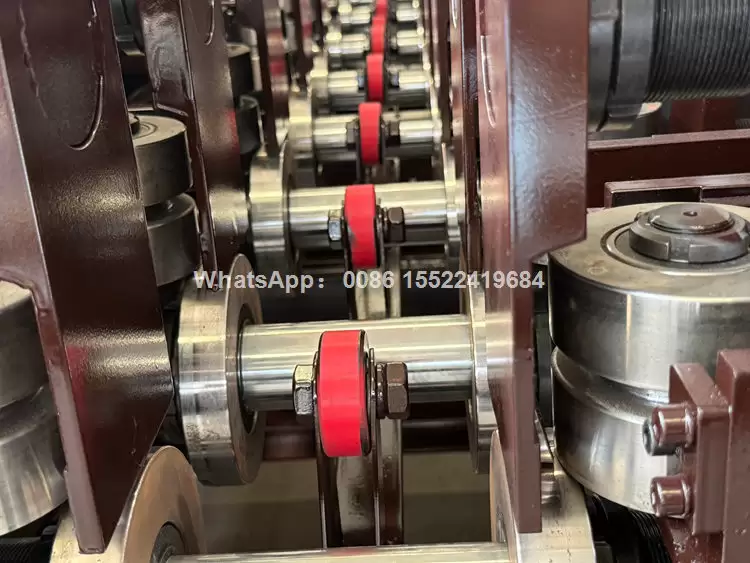

Equipped with durable rollers, robust frames, and reliable hydraulic units, the cable tray punching machine can handle a wide range of tray sizes and thicknesses. It is suitable for producing cable trays that meet international quality standards, offering excellent strength and corrosion resistance.
This machine is widely used in industries such as power plants, factories, commercial buildings, and infrastructure projects. By reducing manual labor and increasing efficiency, it enables manufacturers to achieve large-scale production with lower costs and faster delivery.
Contact us for a quote on cable tray punching machine！
Cable Tray Punching Machine for Trough Trays TFCHNICAL PARAMETEF
| Model parameters | 800/200 |
| Equipment footprint | 36*2.5*2(L*W*H)m |
| Rolling strip width | 200-1250mm |
| Rolling strip thickness | 0.5-2.5mm |
| Product specifications | 800/200-100/50 |
| Total installed capacity of equipment | About 60KW |
| Rolling strip material | Q235 cold-rolled strip steel,galvanized sheet |
| Online punching and production speed | 6-10 meters/minute including punching connection holes (determined by product length and punching quantity,excluding punching tray holes) |
| Rolling workpiece length | 2000mm/3000mm |
| Explosion proof grade of motor | ExdlICT4 |
| Motor protection level | IP55 |
Contact us for a quote on cable tray punching machine！
