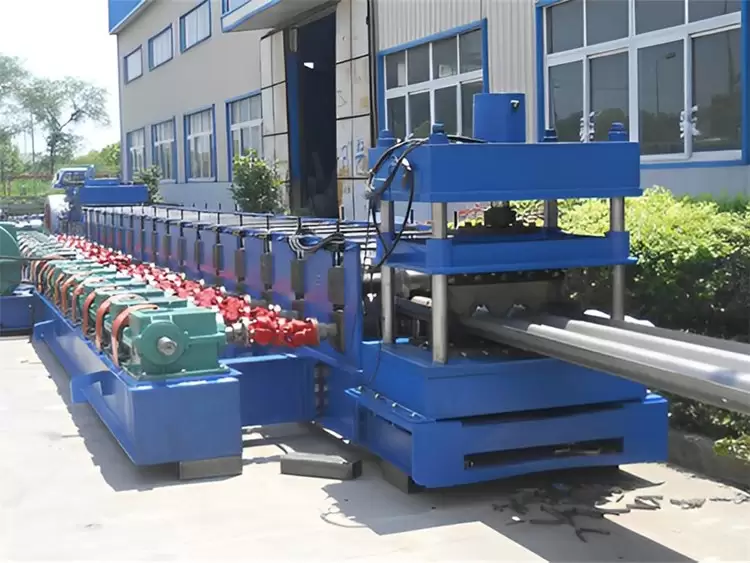

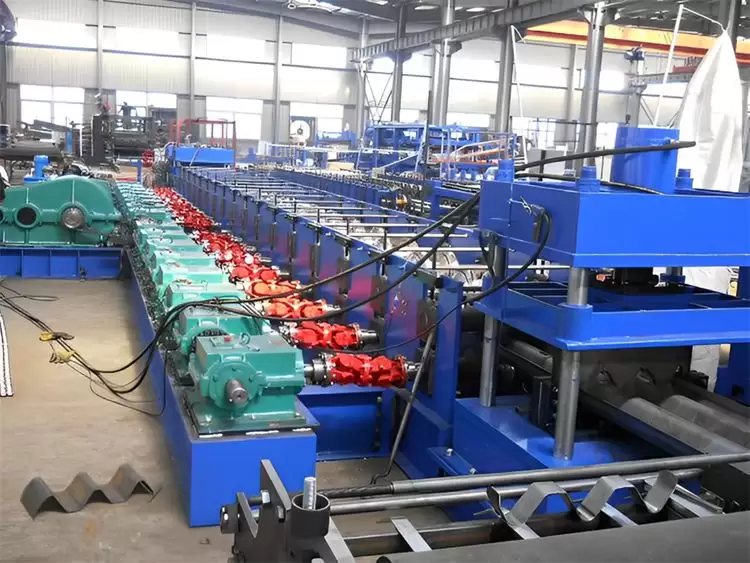

Highway guardrail roll forming machine for sale

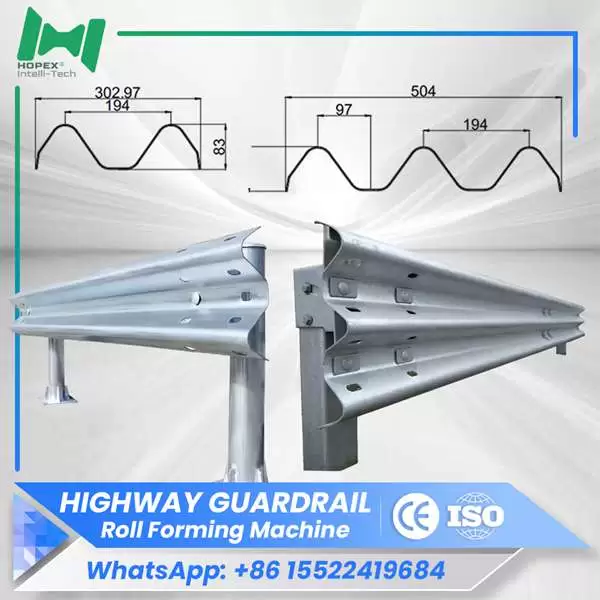

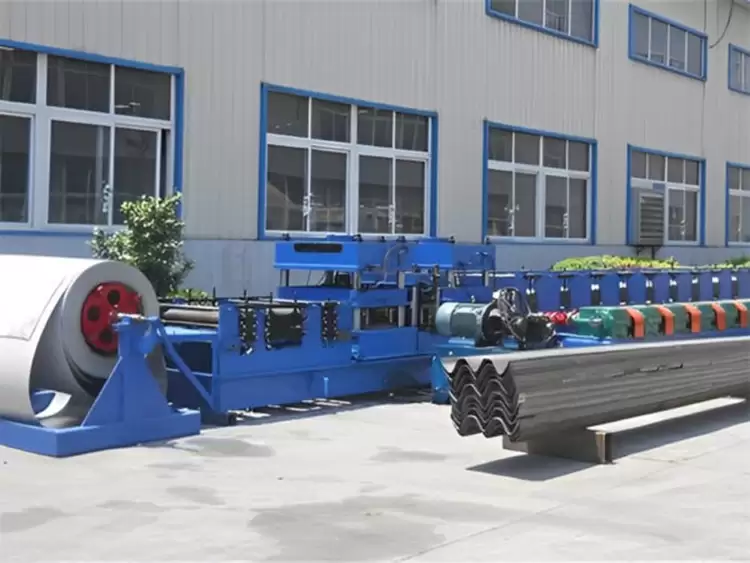

The Highway guardrail roll forming machine for sale is a specialized equipment designed to produce high-quality W beam and thrie beam guardrails used for road safety barriers. Manufactured by HOPEX, this machine ensures high precision, stability, and efficiency through its advanced forming technology and robust construction. It adopts an automatic decoiler, leveler, punching system, roll forming stations, and cutting unit to achieve smooth and accurate profiles. The PLC control system allows easy operation and adjustment, ensuring consistent performance and minimal waste.
Our Highway guardrail roll forming machine for sale is built with heavy-duty rollers and a solid frame to guarantee long service life, even under continuous production. The finished guardrails feature excellent surface quality, uniform shape, and perfect fitting for highway installations. With customizable configurations for thickness, profile type, and punching patterns, HOPEX provides complete solutions tailored to different standards worldwide. This machine is the ideal choice for manufacturers seeking reliability, precision, and high output in the highway safety industry.
Contact us for a quote on highway guardrail roll forming machine！
Highway guardrail roll forming machine for sale TFCHNICAL PARAMETEF
| Decoiler | 8 Ton single-arm decoiler |
| Machine body frame | 500H Beams welding |
| Forming guide feed frame | Side arch type |
| Forming Machine Type | 55 portal frame with chain drive |
| Diameter of shaft | Ø120 mm |
| Transmission System | TX230 distribution gearbox + 180 cross shaft universal coupling |
| Main Motor Power | Dual 22 kW motors with K107 reducer |
| Forming Speed | 5–15 m/min |
| Roller station | 15–18 rows |
| Material of rollers | High-quality CR12, quenched and precision machined |
| Hydraulic system power | 22 kW with four-valve plunger pump |
| Cutting Method | Hydraulic triple-blade shearing |
| Punching Units | Three sets (one for center hole, two for side holes) |
| Cutting blade | Cr12,Quenched treatment 58℃-62℃ |
| Forming Thickness | 2.0–4.0 mm ( Length Tolerance: ±2 mm) |
| Control System | Delta PLC, Doble 22 kW Delta inverters, Delta touch screen |
| Machine Dimensions | 14,000 mm * 2,400 mm (L*W) |
Contact us for a quote on Highway guardrail roll forming machine for sale！
