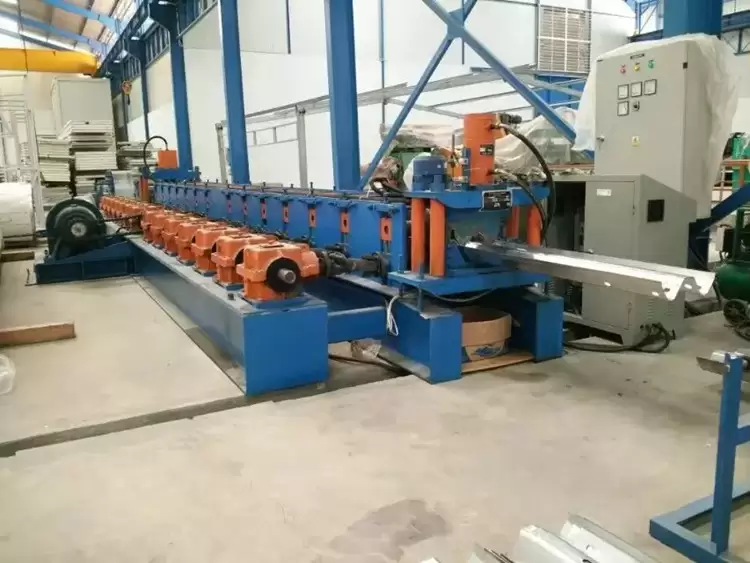

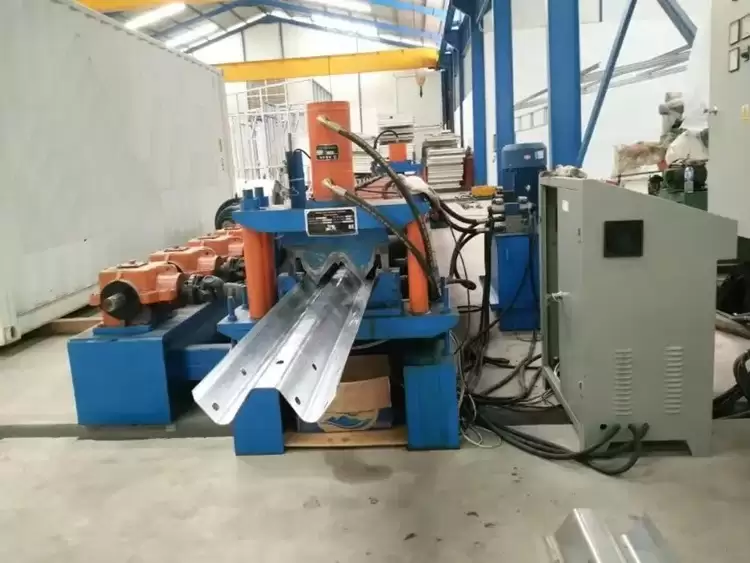

Highway guardrail making w beam crash barrier machine

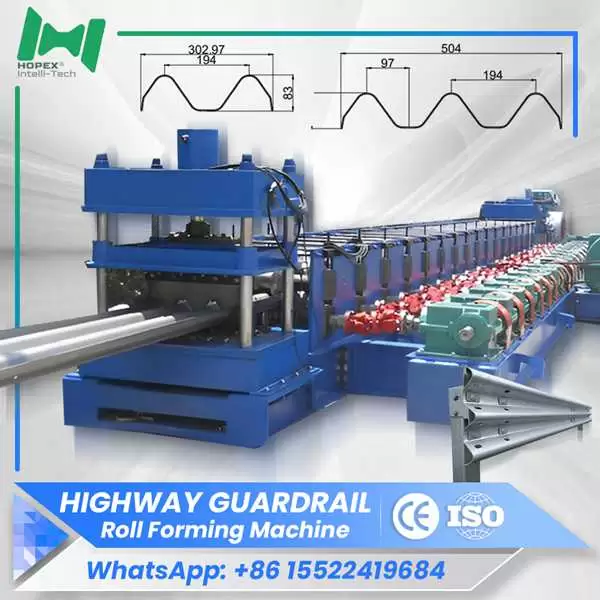

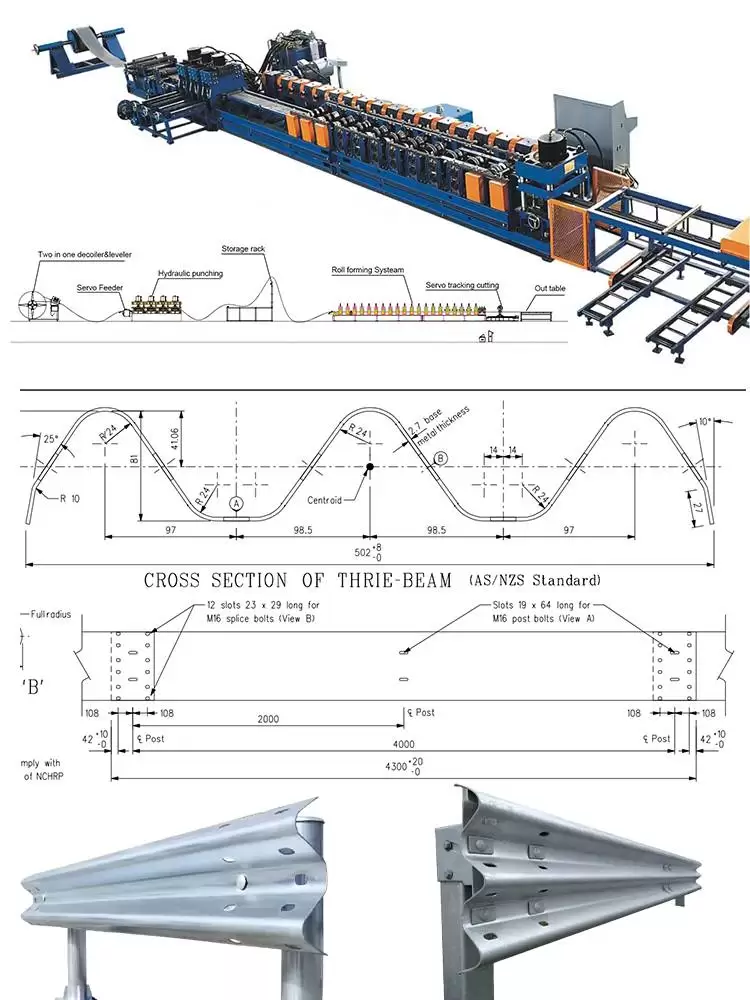

The Highway guardrail making W beam crash barrier machine is an advanced production line engineered to manufacture W-beam and thrie-beam highway guardrails efficiently and accurately. Built by HOPEX, this machine integrates automatic decoiling, leveling, punching, roll forming, and cutting systems into one continuous process, ensuring high productivity and consistent quality.
Made from high-strength steel, the machine delivers stable performance and long service life even under intensive use. Its precision rollers and servo-driven system guarantee uniform profiles and smooth surface finishes. The PLC control unit provides easy operation, automatic length adjustment, and high accuracy in punching and cutting.
This Highway guardrail making W beam crash barrier machine supports customized designs for various guardrail profiles and punching patterns, meeting global standards for road safety applications. Ideal for producing crash barriers used in highways, bridges, and expressways, it helps manufacturers achieve high output with reduced labor and minimal waste.
With HOPEX technology, you get a reliable, energy-efficient, and fully automated solution for modern highway safety guardrail production.
Contact us for a quote on w beam crash barrier machine！
Highway guardrail making w beam crash barrier machine TFCHNICAL PARAMETEF
| Decoiler | 8 Ton single-arm decoiler |
| Machine body frame | 500H Beams welding |
| Forming guide feed frame | Side arch type |
| Forming Machine Type | 55 portal frame with chain drive |
| Diameter of shaft | Ø120 mm |
| Transmission System | TX230 distribution gearbox + 180 cross shaft universal coupling |
| Main Motor Power | Dual 22 kW motors with K107 reducer |
| Forming Speed | 5–15 m/min |
| Roller station | 15–18 rows |
| Material of rollers | High-quality CR12, quenched and precision machined |
| Hydraulic system power | 22 kW with four-valve plunger pump |

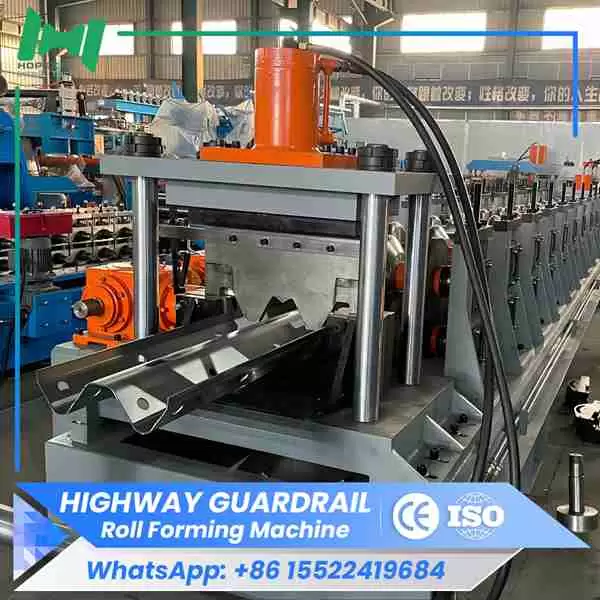

| Cutting Method | Hydraulic triple-blade shearing |
| Punching Units | Three sets (one for center hole, two for side holes) |
| Cutting blade | Cr12,Quenched treatment 58℃-62℃ |
| Forming Thickness | 2.0–4.0 mm ( Length Tolerance: ±2 mm) |
| Control System | Delta PLC, Doble 22 kW Delta inverters, Delta touch screen |
| Machine Dimensions | 14,000 mm * 2,400 mm (L*W) |
Contact us for a quote on Highway guardrail making w beam crash barrier machine！
