Shelf Racking Beam Roll Form Machine Production Line
In the world of industrial logistics and warehousing, the beam is the critical horizontal spine that directly shoulders the load, determining the entire storage system's capacity, stability, and safety. Manufacturing beams that meet rigorous industrial standards requires more than standard roll forming; it demands an integrated solution for creating superior structural integrity. Our Shelf Racking Beam Roll Form Machine Production Line represents a significant leap forward in this field. This advanced, fully automated system is uniquely engineered to produce high-strength storage beams through a patented interlocking process, transforming raw coil steel into ready-to-assemble, double-walled beams with unmatched efficiency and precision. Investing in this sophisticated Shelf Racking Beam Roll Form Machine Production Line is an investment in manufacturing the definitive load-bearing component for the most demanding storage applications.
Email: info@hx-machinery.com
WhatsApp: 0086 15522419684
The Shelf Racking Beam Roll Form Machine Production Line Workflow：
The core innovation of our Shelf Racking Beam Roll Form Machine Production Line lies in its seamless five-stage sequence.

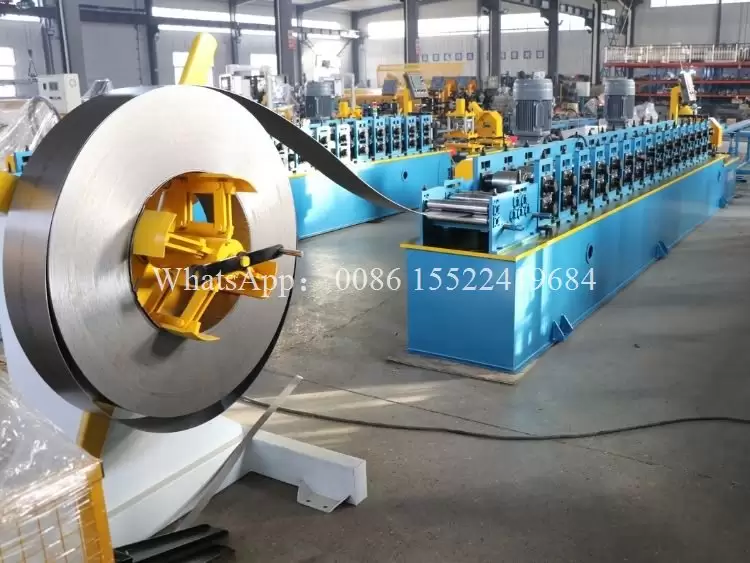

The process initiates with a precision decoiler ensuring consistent material feed.
The steel strip then enters the primary roll forming station, where it is meticulously shaped into a specific, robust profile.
A high-accuracy hydraulic shear cuts the continuous profile to exact pre-set lengths. Here, our proprietary technology takes center stage: the cut semi-finished beams are automatically conveyed to a secondary, specialized interlocking roll forming unit.
This unit precisely crimps and mechanically locks two C-shaped channels together, forming a single, closed-section beam with exceptional torsional rigidity and load-bearing strength—far surpassing that of a single-piece design.
The final product is then neatly stacked by an automated receiving rack, completing a continuous, streamlined production cycle.
| Product Name | Shelf Racking Beam Roll Form Machine Production Line |
| Main motor power | 15 kw（Siemens） |
| Hydraulic station | Vane pump, 7.5 kw |
| Produce speed | 20 m/min |
| Shaft material | 45# Steel |
| Brand of electrical control cabinet |
Phase sequence protector Independent cabinet |
| Touch screen | Siemens or customized according to customer requirements |
| Rolling materials | CCr12, hardness 55-60 (HRC), chrome plating thickness 0.01-0.015 (mm) |
| Roller diameter | 60 mm |
| Cutting blade material | Cr12MoV, hardness 58 - 62 (HRC) |
| Roller diameter | Φ75 mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 1.5 mm |
| Rows | 18-24（be customized） |
| Feeding width |
192±2 mm
|
| Product tolerance |
Length: +2 mm / all processed dimensions
Width, Height: ± 0.5 mm Other aspects: Tolerances for other dimensions (length, angles, etc.) shall conform to EN10162 cold-rolled steel profiles standard. |
| Dimensions (length × width × height) |
21 x 2 x 1.8 (meters)
|
| Weight | About 9 tons |
| Control system | PLC |
| Total power | 42 kw |
| Output material handling rack-Table length | 3m ×2 |
Email: info@hx-machinery.com
WhatsApp: 0086 15522419684
Key Advantages and Distinctive Features:
This Shelf Racking Beam Roll Form Machine Production Line delivers unparalleled benefits that translate directly to your competitive edge and product excellence.
Unmatched Structural Integrity: The patented two-piece interlocking process creates a closed-beam design that offers superior strength-to-weight ratio, resistance to bending, and overall durability, ensuring your racking systems safely maximize storage density.
High Efficiency & Automation: The fully integrated line ensures a continuous flow from coil to finished beam, dramatically increasing output, reducing labor costs, and minimizing manual handling and production bottlenecks.
Exceptional Precision & Consistency: Every stage, from forming to cutting and interlocking, is controlled for high repeatability, guaranteeing dimensional accuracy and consistent quality across every single beam produced.
Full Customization Flexibility: We understand that specifications vary. This Shelf Racking Beam Roll Form Machine Production Line is highly customizable. Key parameters—including material entry width, roll forming thickness, beam length, and operating voltage—are tailored to your exact product design and factory specifications.
Comprehensive Expert Support: To safeguard your productivity and ROI, we provide lifetime technical support. Our engineers offer real-time, remote video guidance for instant troubleshooting, operational optimization, and preventative maintenance, ensuring your line operates at peak performance with minimal downtime.
By combining innovative interlocking technology, robust automation, and a commitment to tailored solutions, our Shelf Racking Beam Roll Form Machine Production Line is more than just machinery—it is a strategic partnership. It empowers you to manufacture the foundational component of superior storage systems, delivering the strength, reliability, and efficiency that modern logistics demand.
