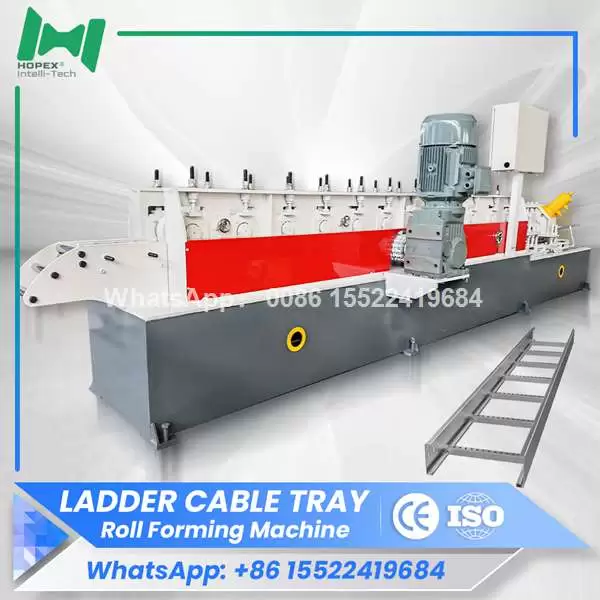

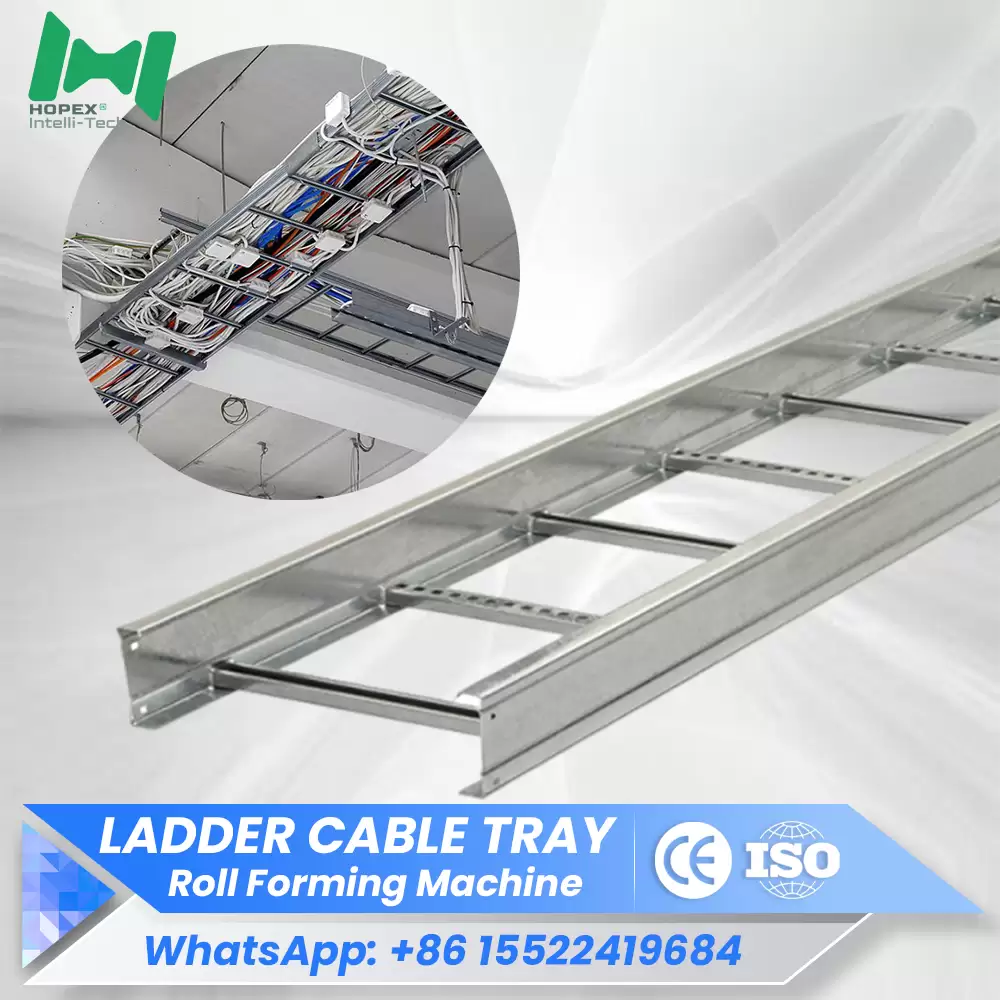

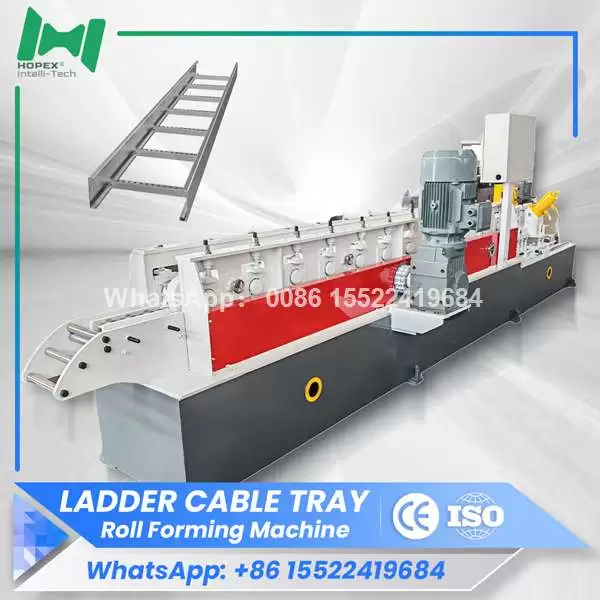

Cable Ladder Machine for Ladder-Type Cable Trays
The HOPEX cable ladder machine is expertly designed to produce ladder-type cable trays with side specifications of 100, 150, and 200 mm, delivering high precision and efficiency for industrial and commercial cable management projects. With a production speed of 10–16 meters per minute, it ensures rapid output without compromising quality, making it ideal for large-scale electrical installations.
This machine integrates roll forming, punching, and cutting in one seamless system, enabling uniform tray production with consistent side profiles. Operators can easily adjust the machine for different tray widths, ensuring flexibility to meet diverse project requirements. Its advanced PLC control system provides intuitive operation, real-time monitoring, and automated adjustments, enhancing operational efficiency and reducing material waste.
Constructed with robust materials and high-quality components, the HOPEX cable ladder machine guarantees long-term durability, low maintenance, and reliable performance. Perfect for electrical contractors and manufacturing plants producing ladder-type cable trays, it offers cost-effective, precise, and high-speed production. Investing in this machine ensures superior productivity, accurate tray dimensions, and a dependable solution for cable routing and installation projects.
Contact us for a quote on cable ladder machine！
Cable Ladder Machine for Ladder-Type Cable Trays TFCHNICAL PARAMETEF
| Equipment footprint | 18*1.8*1.5(L*W*H)m |
| Rolling strip width | 120-260mm |
| Rolling strip thickness | 1.0-2.5mm |
| Product specifications | 100/150/200 |
| Total installed capacity of equipment | About 50KW |
| Rolling strip material | Q195 hot-rolled strip steel, galvanized sheet |
| Online punching and production speed | 10-16 meters/minute including punching connection holes (determined by product length and punching quantity,excluding punching tray holes) |
| Explosion proof grade of motor | ExdlICT4 |
| Motor protection level | IP55 |
Contact us for a quote on cable ladder machine！
