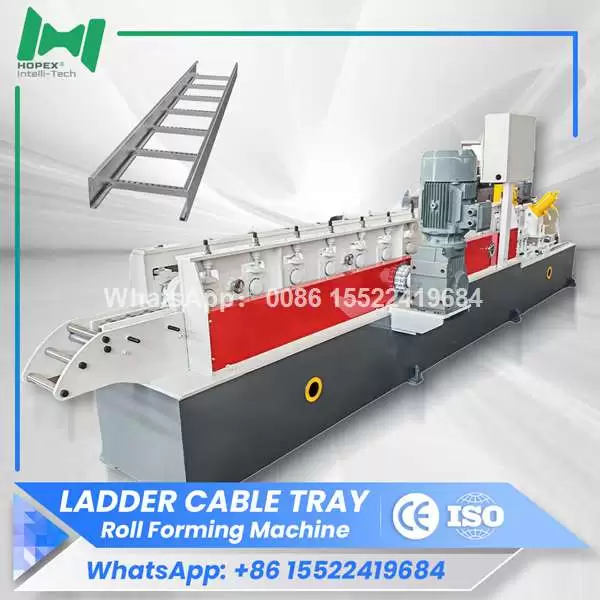

Cable Ladder Machine for Tray Production

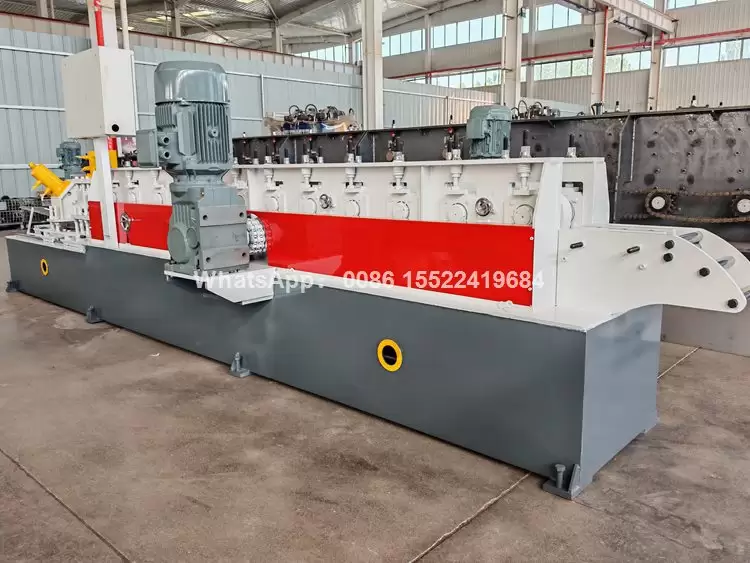

The HOPEX cable ladder machine is a high-precision solution for producing ladder-type cable trays with strong structural stability. Designed for modern cable-management applications, the machine supports a production rate of 10–16 meters per minute, offering both speed and reliability for continuous industrial manufacturing.
The equipment includes integrated punching, roll-forming, and automatic cutting systems that work in coordination to ensure accurate rung spacing, uniform forming quality, and smooth edge finishing. With modular forming units, the machine allows effortless adjustment for different ladder dimensions, making it highly flexible for custom production requirements.
Its advanced PLC system provides full automation, intuitive operation, and real-time control over all production parameters. The machine is built with durable steels, precision-machined rollers, and reinforced structural components to maintain accuracy and stability over long-term use.
This cable ladder machine is widely used in electrical distribution projects, industrial factories, data centers, and construction infrastructure. It enables manufacturers to improve efficiency, reduce rejection rates, and produce high-quality ladder trays that meet international standards. The HOPEX cable ladder machine is your dependable equipment choice for professional cable ladder production.
Contact us for a quote on cable ladder machine！
Cable Ladder Machine for Ladder-Type Cable Trays TFCHNICAL PARAMETEF
| Equipment footprint | 18*1.8*1.5(L*W*H)m |
| Rolling strip thickness | 1.0-2.5mm |
| Total installed capacity of equipment | About 50KW |
| Rolling strip material | Q195 hot-rolled strip steel, galvanized sheet |
| Online punching and production speed | 10-16 meters/minute including punching connection holes (determined by product length and punching quantity,excluding punching tray holes) |
| Explosion proof grade of motor | ExdlICT4 |
| Motor protection level | IP55 |
Contact us for a quote on cable ladder machine！
