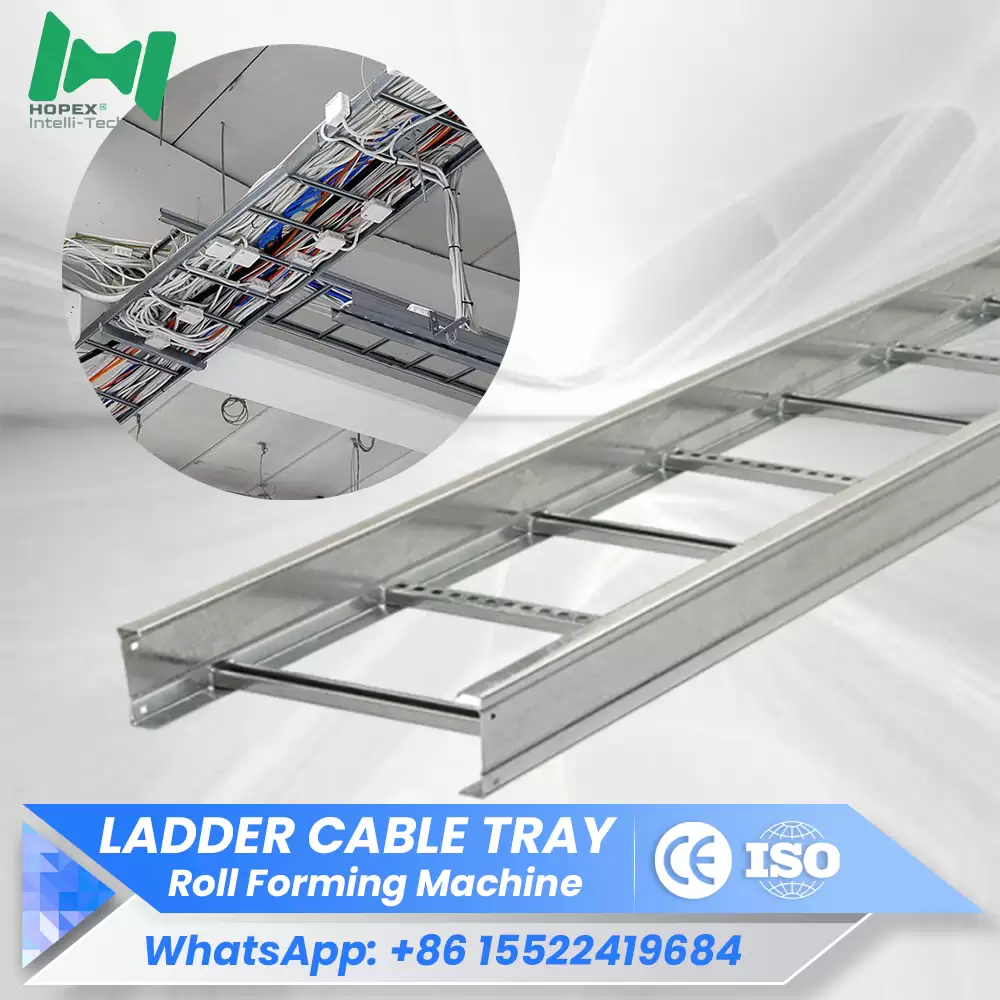

Cable Ladder Machine for Tray Production
The HOPEX cable ladder machine is specially engineered for manufacturing high-strength cable ladder systems used in industrial and commercial electrical installations. Designed for efficiency, the machine operates at a production speed of 10–16 meters per minute, enabling continuous and stable output for large-scale manufacturing requirements.

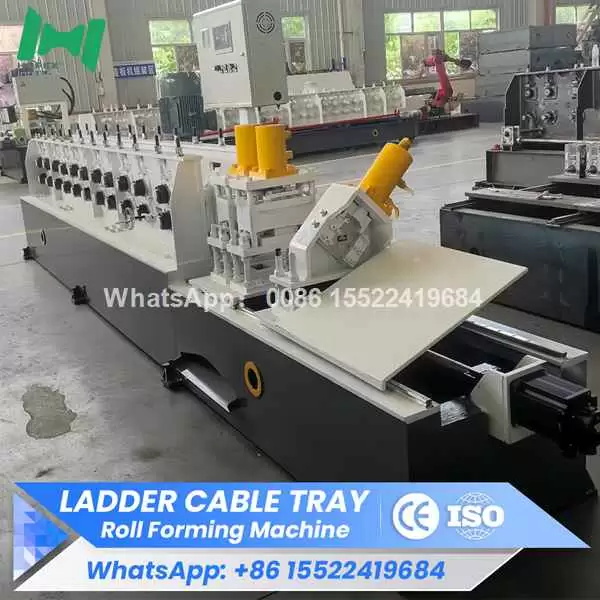

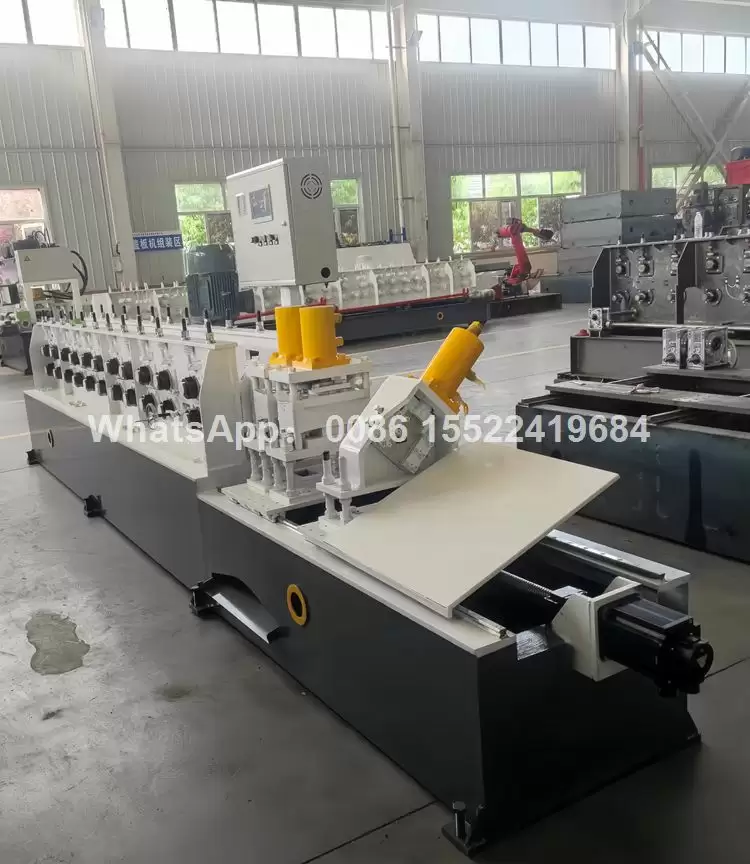

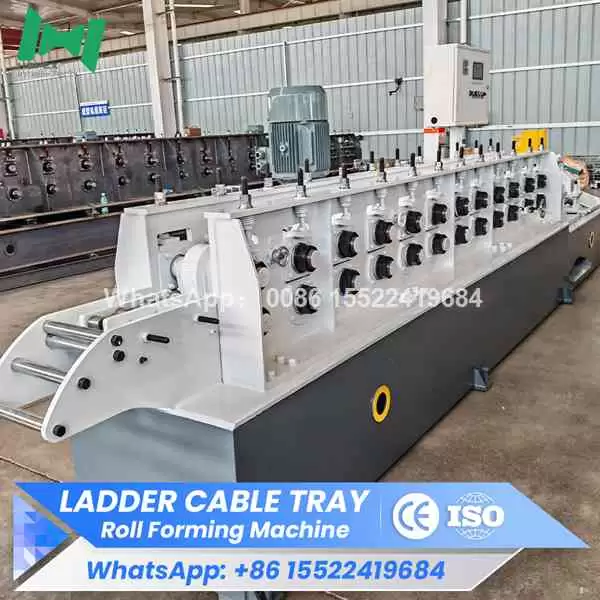

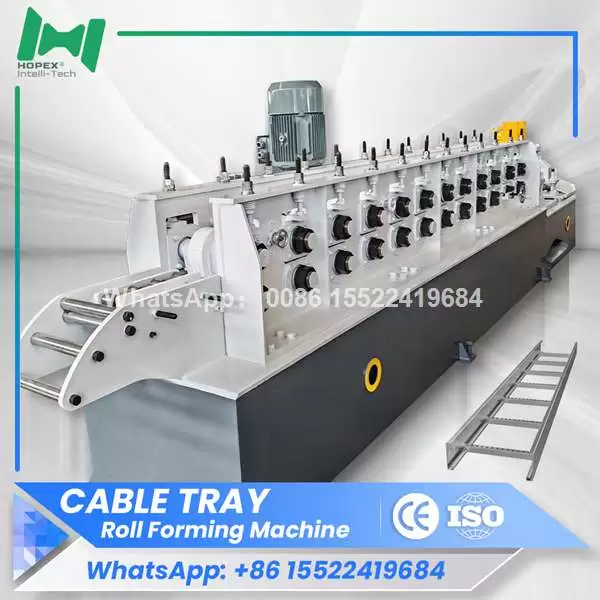

This equipment integrates automated punching, roll forming, and precise cutting to produce ladder rungs and side rails with consistent accuracy and exceptional structural performance. The forming stations are adjustable, allowing quick changes between different specifications and ensuring minimal downtime during transitions.
Powered by a reliable PLC control system, the HOPEX cable ladder machine offers real-time monitoring, intelligent parameter adjustments, and optimized workflow. Its heavy-duty frame, hardened rollers, and high-precision guiding system guarantee long service life and superior shaping accuracy.
Suitable for electrical networks, industrial plants, commercial buildings, and cable support frameworks, this machine helps manufacturers improve product consistency, reduce labor costs, and increase production capacity. Reliable, efficient, and built for long-term operation, the HOPEX cable ladder machine is the ideal choice for producing professional cable ladder systems.
Contact us for a quote on cable ladder machine！
Cable Ladder Machine for Ladder-Type Cable Trays TFCHNICAL PARAMETEF
| Equipment footprint | 18*1.8*1.5(L*W*H)m |
| Rolling strip thickness | 1.0-2.5mm |
| Total installed capacity of equipment | About 50KW |
| Rolling strip material | Q195 hot-rolled strip steel, galvanized sheet |
| Online punching and production speed | 10-16 meters/minute including punching connection holes (determined by product length and punching quantity,excluding punching tray holes) |
| Explosion proof grade of motor | ExdlICT4 |
| Motor protection level | IP55 |
Contact us for a quote on cable ladder machine！
