Shelf Upright Roll Forming Machine Production Line

In the world of industrial and commercial storage solutions, the upright column is the fundamental backbone that defines the system's height, stability, and ultimate load-bearing capacity. Manufacturing this critical component demands a production line capable of delivering exceptional precision, structural integrity, and consistent efficiency. Our dedicated Shelf Upright Roll Forming Machine Production Line is engineered specifically for this vital task. This fully automated, integrated system is designed to transform raw steel coil into perfectly formed, precision-punched upright columns, providing manufacturers with a complete, reliable, and high-output solution. Choosing our advanced Shelf Upright Roll Forming Machine Production Line is an investment in producing the foundational element that guarantees the safety, durability, and performance of the entire storage rack system.

Email: info@hx-machinery.com

WhatsApp: 0086 15522419684

Shelf Upright Roll Forming Machine Production Line workflow:

Decoiler → Leveling → Punching → Roll forming → Cutting → Finished product receiving rack

The superior performance of our Shelf Upright Roll Forming Machine Production Line is showcased through its optimized, sequential workflow.

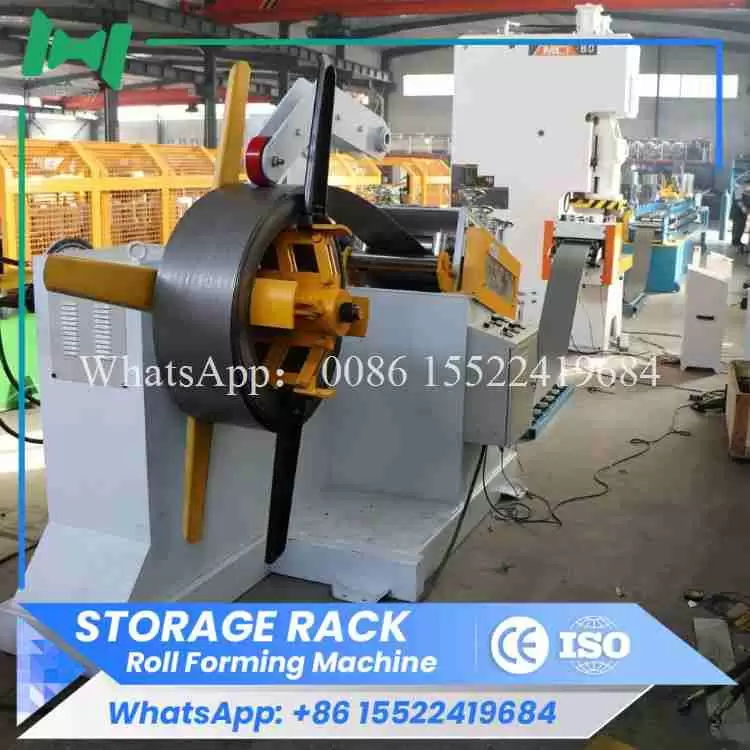

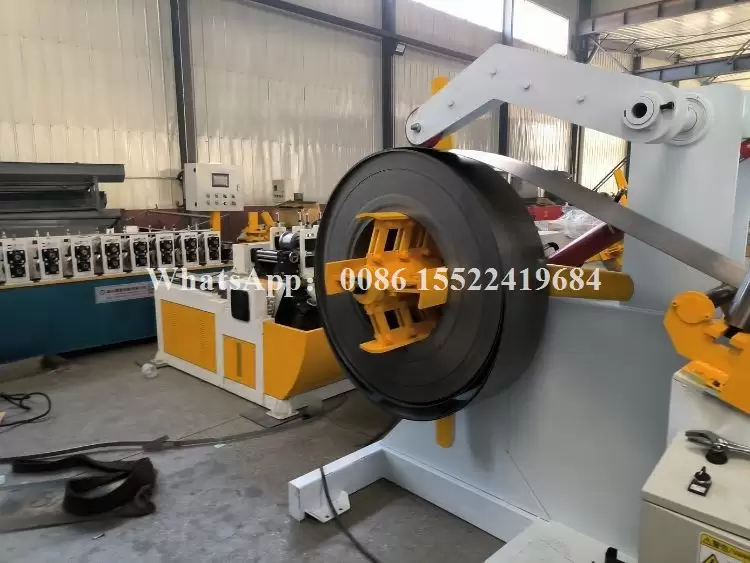

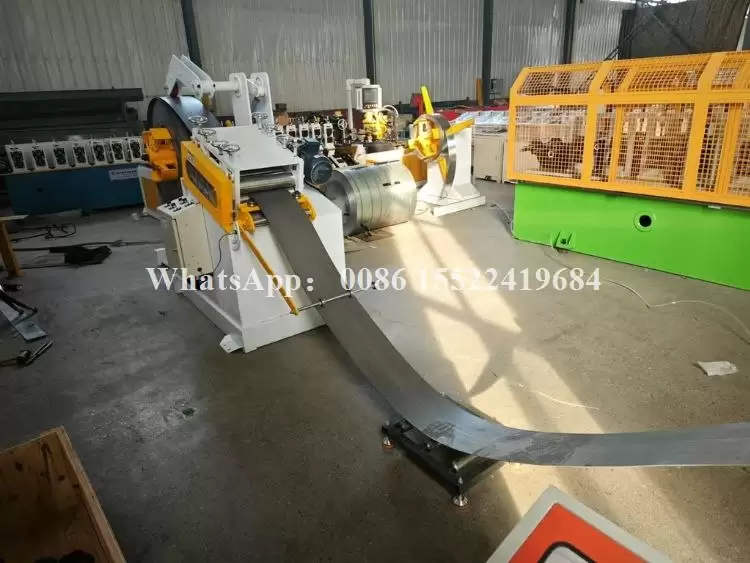

The process begins with a heavy-duty decoiler that feeds high-strength steel coil into the line with consistent tension.

A key differentiator of this line is the next critical stage: precision punching. Before forming, a high-accuracy punching station perforates the flat strip with clean, burr-free holes at exact intervals. This "pre-punching" methodology ensures perfect hole alignment and prevents deformation, a crucial factor for the subsequent assembly of beams and connectors.

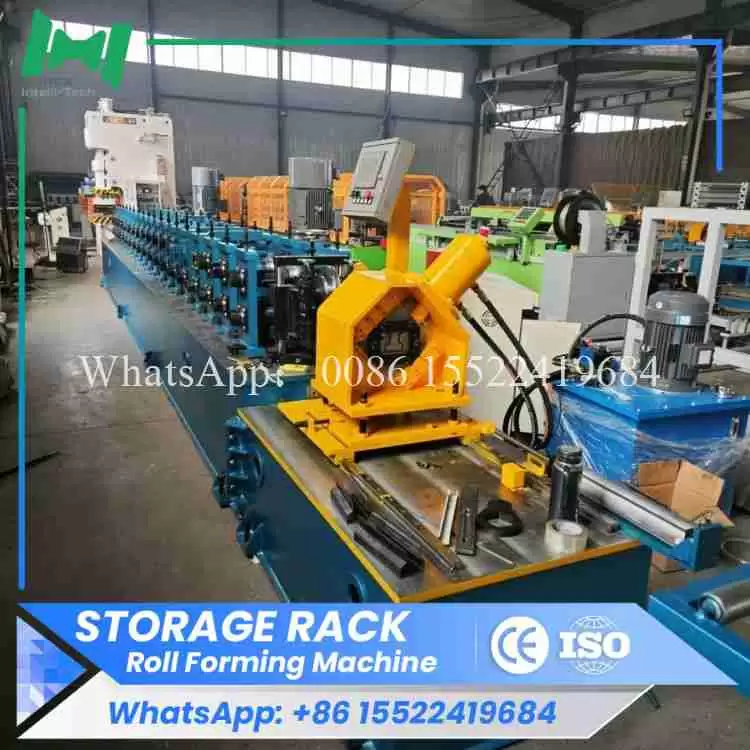

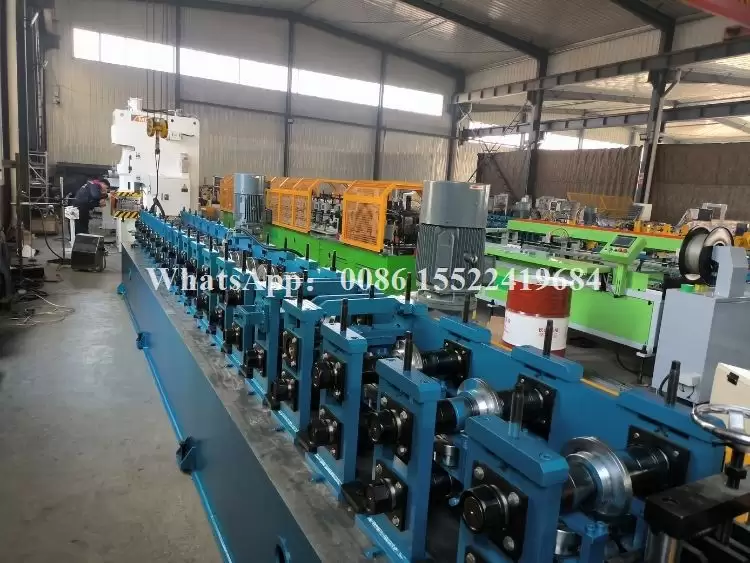

The pre-punched strip then advances to the heart of the system—the precision roll forming station. Here, through a meticulously engineered series of roller dies, the metal is gradually cold-formed into the complex, rigid profile of the shelf upright.

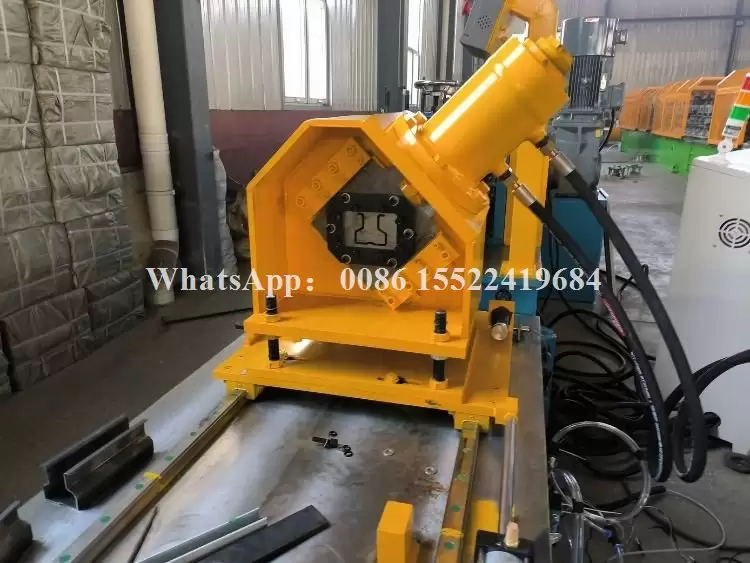

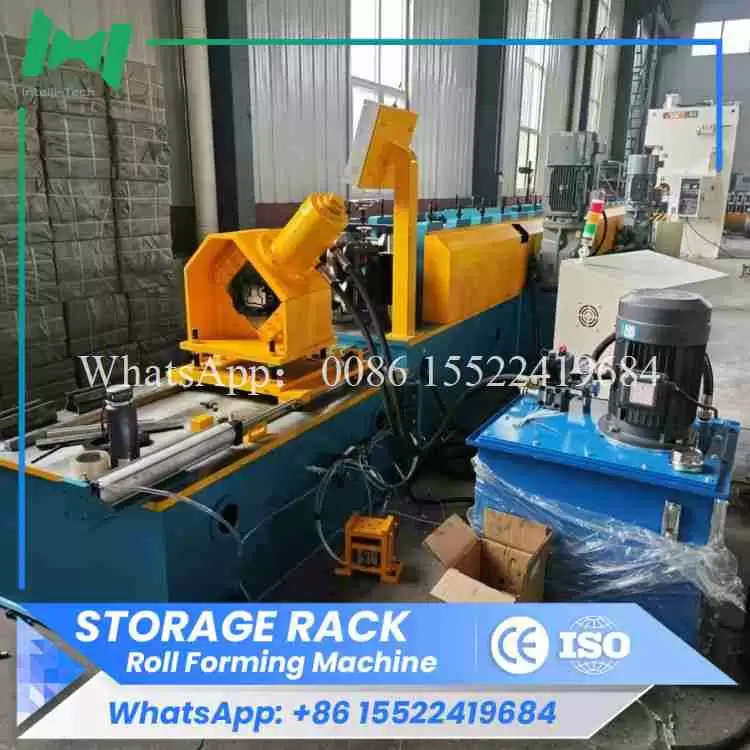

Following forming, a robust hydraulic shear delivers a clean, square cut to the exact required length.

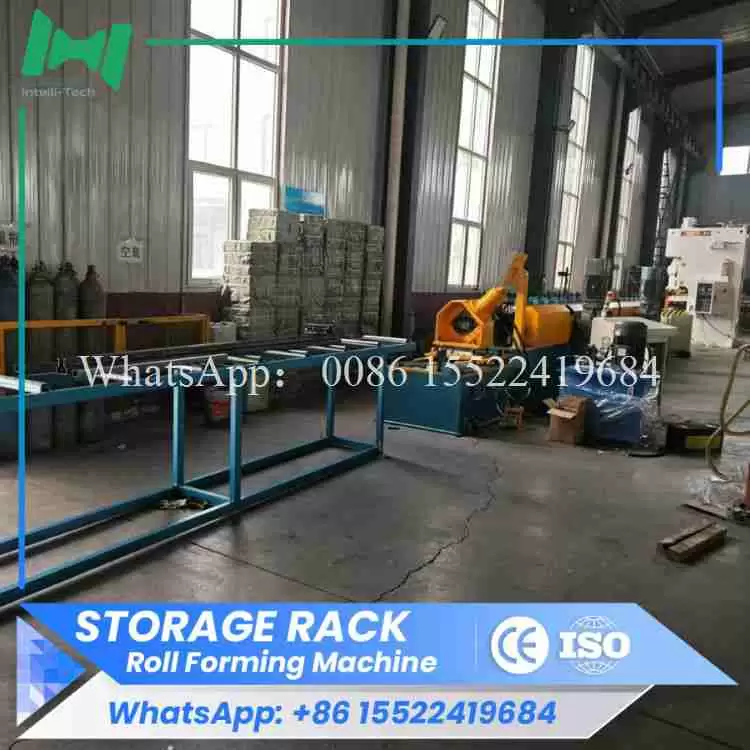

Finally, the finished uprights are automatically stacked and organized on a receiving rack, completing a seamless, hands-free production cycle from coil to finished product within this integrated Shelf Upright Roll Forming Machine Production Line.

Shelf Upright Roll Forming Machine Production Line

Email: info@hx-machinery.com

WhatsApp: 0086 15522419684

Key Features of Upright Roll Forming Machine

High Production Speed
Strut channel roll forming machines are designed for fast production, significantly boosting output while reducing labor costs.

Flexible Applications
These machines can manufacture strut channels in multiple sizes, materials, and designs—such as slotted, solid, and back-to-back profiles—allowing manufacturers to meet diverse industry requirements.

Precision and Consistency
Advanced roll forming technology ensures each channel is produced with high accuracy and uniformity. This guarantees structural strength and seamless integration with other support system components.

Automated Operation
Equipped with modern PLC control systems, strut channel roll forming machines enable fully automated production. This minimizes manual work, reduces errors, and enhances overall efficiency.

Efficient Material Usage
The roll forming process maximizes raw material utilization, generating minimal waste. This makes the equipment both cost-effective and environmentally sustainable.

Durable and Low Maintenance
Built with robust components, these machines are reliable and require little maintenance. This lowers downtime and reduces long-term operating costs.

Conclusion
With advantages such as speed, versatility, precision, automation, material efficiency, and durability, strut channel roll forming machines are a vital solution for manufacturers in construction, electrical, and mechanical sectors.

Applications of Upright Roll Forming Machine

Strut channel roll forming machines manufacture C-shaped or U-shaped steel channels, commonly referred to as strut channels. These channels are widely valued for their versatility, durability, and ability to support different systems across multiple industries.

Construction & Infrastructure
Used as structural supports for beams, columns, and floors, strut channels enhance load distribution and ensure building stability.

Electrical Systems
They provide secure frameworks for cable trays, conduits, and wiring, keeping electrical components organized, protected, and easily accessible for maintenance.

HVAC Installations
In heating, ventilation, and air conditioning systems, strut channels support ductwork, piping, and equipment, allowing for efficient installation and adjustments.

Solar Energy
Strut channels serve as robust mounting structures for solar panels, offering long-term durability and adaptability to withstand outdoor conditions.

Industrial & Mechanical Uses
They support machinery, equipment, and piping, providing modular solutions that are easy to modify or expand as needed.

Warehousing & Storage
Strut channels are essential in pallet racking, shelving, and storage systems, offering strength and flexibility for changing warehouse layouts.

Transportation Industry
Applied within vehicles, they secure wiring, piping, and equipment, providing a lightweight yet resilient support system that withstands vibrations and stress.

Summary
With their adaptability, strength, and modular design, strut channels produced by roll forming machines are indispensable in construction, electrical, HVAC, solar, industrial, storage, and transportation sectors.
