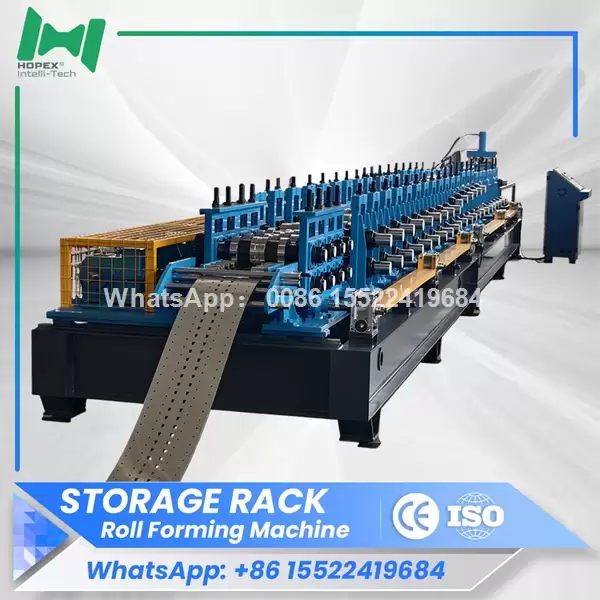

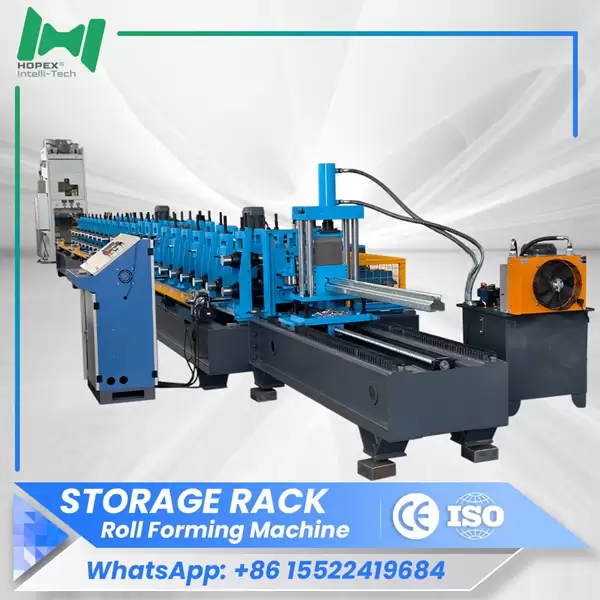

Pallet rack roll forming machine
The HOPEX pallet rack roll forming machine is specially designed for manufacturing heavy-duty uprights and beams used in pallet storage systems. It integrates uncoiling, leveling, punching, roll forming, and automatic cutting into a continuous high-speed production line. The advanced PLC control system ensures accurate synchronization and easy operation. With servo-driven feeding and hydraulic cutting, the machine delivers superior precision and durability. It supports various hole patterns, sizes, and material thicknesses to meet diverse warehouse rack specifications. Built with high-quality components and a robust frame, this roll forming machine guarantees long service life and minimal maintenance. HOPEX provides customizable solutions for pallet rack roll forming, improving production efficiency and reducing labor costs.
Email: info@hx-machinery.com
WhatsApp: 0086 15522419684
Pallet rack roll forming machine
| Raw Material | HCR Coil/Carbon Steel Coil,GI Coil,and so on |
| Material Thickness | 1.5~2.5mm |
| Profile | 90/100/120*70mm |
| Forming Speed | 25 m/min |
| Complete line working speed | 6-8m/min |
| Decoiler Capacity | 5 Ton |
| Machine body frame | 450H Beams |
| Roller station | 18 rows |
| Motor Power | 18.5KW |
| Pucnhing die material | CR12 MOV,HRD 58-62 degree |
| Shaft | 80mm diameter,45# steel |
| Hydraulic Motor Power | 5.5 KW |
| Servo Track Motor Power | 2.2 KW |
Email: info@hx-machinery.com
WhatsApp: 0086 15522419684
Key Features of pallet rack roll forming machine
Rack uprights are the backbone of any storage rack system, offering outstanding strength, stability, and durability. Made from high-quality galvanized or cold-rolled steel, they provide excellent load-bearing capacity while resisting corrosion and deformation. Their perforated design allows for adjustable beam placement, giving flexibility to meet different storage requirements. The precise roll forming process ensures uniform dimensions and smooth assembly, reducing installation time. With enhanced rigidity and consistent performance, rack uprights help maximize warehouse space, improve safety, and extend the service life of the entire racking structure.
Applications of pallet rack roll forming machine
Rack uprights are widely used in industrial warehouses, logistics centers, supermarkets, and retail storage systems. They serve as the main vertical support for pallet racks, cantilever racks, shelving units, and mezzanine systems. Suitable for storing pallets, cartons, and heavy goods, they can be customized in thickness, hole pattern, and height according to specific load requirements. Thanks to their modular design, rack uprights are compatible with various rack types and configurations, making them an essential component for modern material handling and efficient inventory management.
