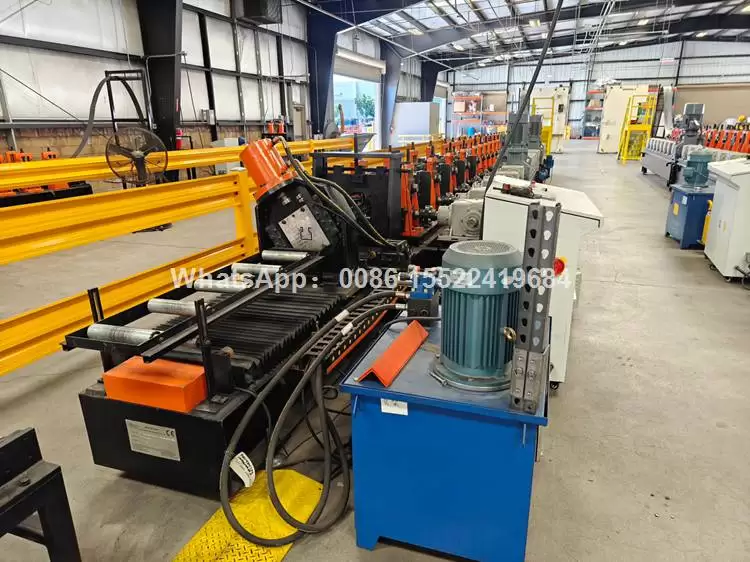

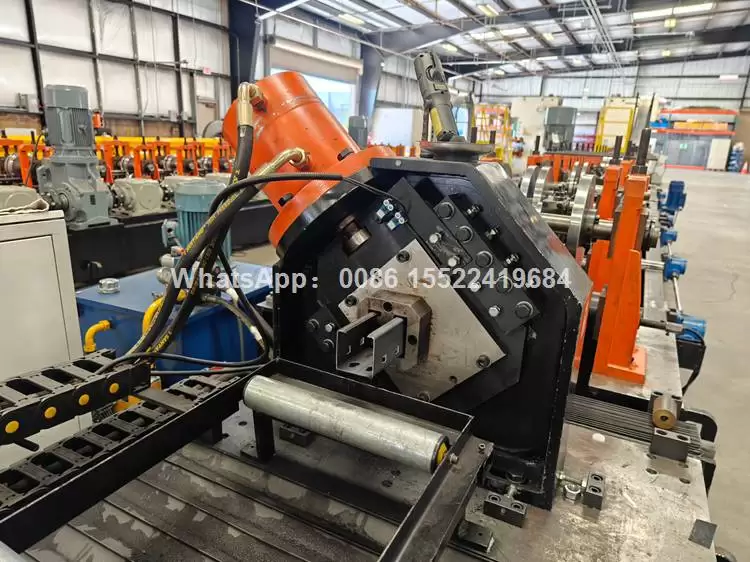

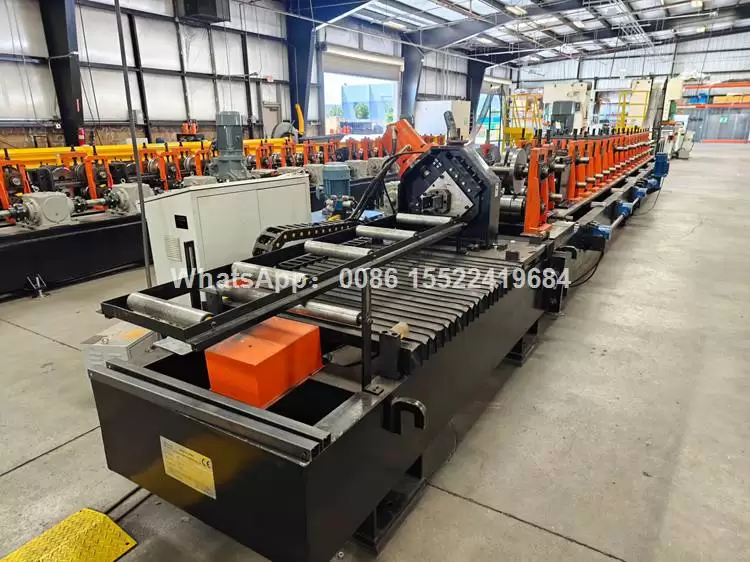

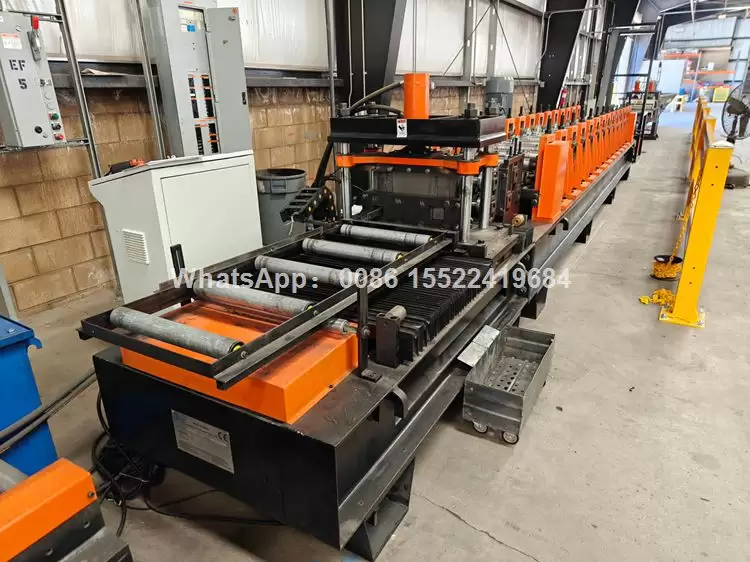

Rack shelf roll forming machine
The HOPEX rack shelf roll forming machine is engineered for the production of high-strength uprights and beams used in industrial and warehouse shelving systems. It integrates decoiling, leveling, punching, roll forming, and cutting into a fully automated line. Controlled by a PLC system with a touch screen interface, the machine ensures precise forming and easy operation. The servo feeding system and hydraulic cutting device guarantee dimensional accuracy and smooth performance. Suitable for various shelf profiles and hole types, it allows flexible customization for different storage rack standards. Built from durable materials and equipped with advanced rollers, the HOPEX roll forming machine provides consistent performance, long service life, and reduced maintenance. It’s the ideal choice for manufacturers seeking to improve productivity and quality in rack shelf production.
Email: info@hx-machinery.com
WhatsApp: 0086 15522419684
Rack shelf roll forming machine
| Raw Material | HCR Coil/Carbon Steel Coil,GI Coil,and so on |
| Material Thickness | 1.5~2.5mm |
| Profile | 90/100/120*70mm |
| Forming Speed | 25 m/min |
| Complete line working speed | 6-8m/min |
| Decoiler Capacity | 5 Ton |
| Machine body frame | 450H Beams |
| Roller station | 18 rows |
| Motor Power | 18.5KW |
| Pucnhing die material | CR12 MOV,HRD 58-62 degree |
| Shaft | 80mm diameter,45# steel |
| Hydraulic Motor Power | 5.5 KW |
| Servo Track Motor Power | 2.2 KW |
Email: info@hx-machinery.com
WhatsApp: 0086 15522419684
Key Features of rack shelf roll forming machine
Rack uprights are the backbone of any storage rack system, offering outstanding strength, stability, and durability. Made from high-quality galvanized or cold-rolled steel, they provide excellent load-bearing capacity while resisting corrosion and deformation. Their perforated design allows for adjustable beam placement, giving flexibility to meet different storage requirements. The precise roll forming process ensures uniform dimensions and smooth assembly, reducing installation time. With enhanced rigidity and consistent performance, rack uprights help maximize warehouse space, improve safety, and extend the service life of the entire racking structure.
Applications of rack shelf roll forming machine
Rack uprights are widely used in industrial warehouses, logistics centers, supermarkets, and retail storage systems. They serve as the main vertical support for pallet racks, cantilever racks, shelving units, and mezzanine systems. Suitable for storing pallets, cartons, and heavy goods, they can be customized in thickness, hole pattern, and height according to specific load requirements. Thanks to their modular design, rack uprights are compatible with various rack types and configurations, making them an essential component for modern material handling and efficient inventory management.
