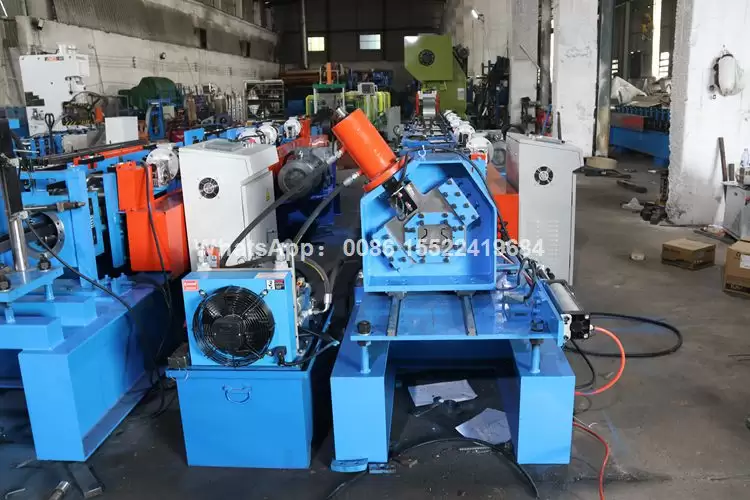

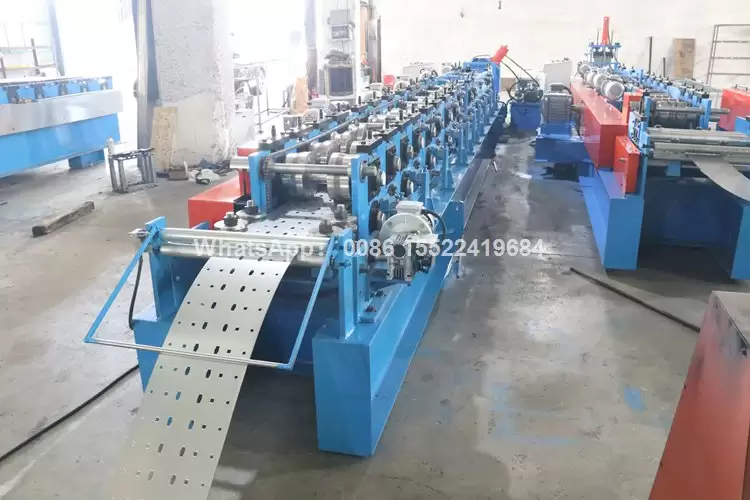

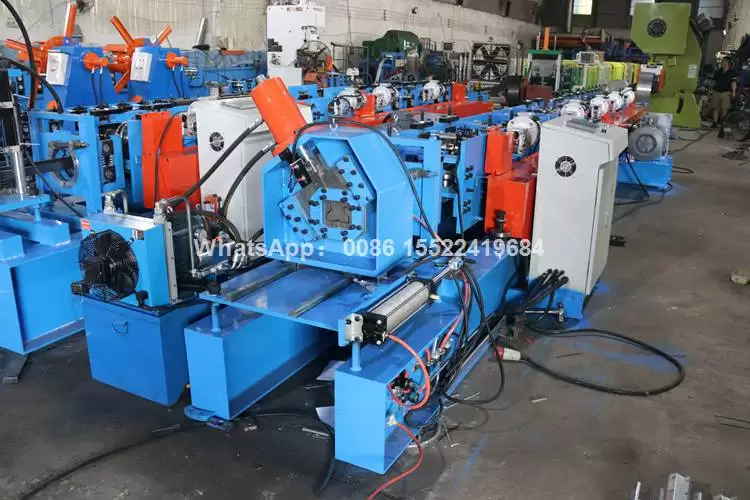

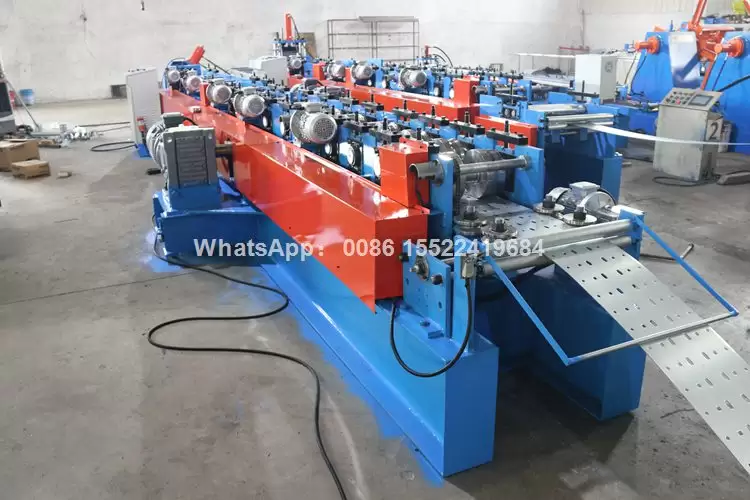

Upright rack roll forming machine
The HOPEX upright rack roll forming machine is engineered to produce high-strength uprights used in warehouse storage racks and shelving systems. This machine integrates decoiling, leveling, punching, roll forming, and cutting in one continuous process, ensuring precision and stability. Controlled by a PLC system with a touchscreen interface, it offers easy operation and real-time monitoring. The servo feeding and automatic cutting system guarantee consistent accuracy and smooth production. HOPEX machines can be customized for various rack designs, hole patterns, and material thicknesses. Built with durable components and advanced forming technology, the upright rack roll forming machine ensures long-term performance, high output, and minimal maintenance, making it an ideal choice for rack manufacturers worldwide.
Email: info@hx-machinery.com
WhatsApp: 0086 15522419684
Upright rack roll forming machine
| Raw Material | HCR Coil/Carbon Steel Coil,GI Coil,and so on |
| Material Thickness | 1.5~2.5mm |
| Profile | 90/100/120*70mm |
| Forming Speed | 25 m/min |
| Complete line working speed | 6-8m/min |
| Decoiler Capacity | 5 Ton |
| Machine body frame | 450H Beams |
| Roller station | 18 rows |
| Motor Power | 18.5KW |
| Pucnhing die material | CR12 MOV,HRD 58-62 degree |
| Shaft | 80mm diameter,45# steel |
| Hydraulic Motor Power | 5.5 KW |
| Servo Track Motor Power | 2.2 KW |
Email: info@hx-machinery.com
WhatsApp: 0086 15522419684
Key Features of upright rack roll forming machine
Rack uprights are the backbone of any storage rack system, offering outstanding strength, stability, and durability. Made from high-quality galvanized or cold-rolled steel, they provide excellent load-bearing capacity while resisting corrosion and deformation. Their perforated design allows for adjustable beam placement, giving flexibility to meet different storage requirements. The precise roll forming process ensures uniform dimensions and smooth assembly, reducing installation time. With enhanced rigidity and consistent performance, rack uprights help maximize warehouse space, improve safety, and extend the service life of the entire racking structure.
Applications of upright rack roll forming machine
Rack uprights are widely used in industrial warehouses, logistics centers, supermarkets, and retail storage systems. They serve as the main vertical support for pallet racks, cantilever racks, shelving units, and mezzanine systems. Suitable for storing pallets, cartons, and heavy goods, they can be customized in thickness, hole pattern, and height according to specific load requirements. Thanks to their modular design, rack uprights are compatible with various rack types and configurations, making them an essential component for modern material handling and efficient inventory management.
